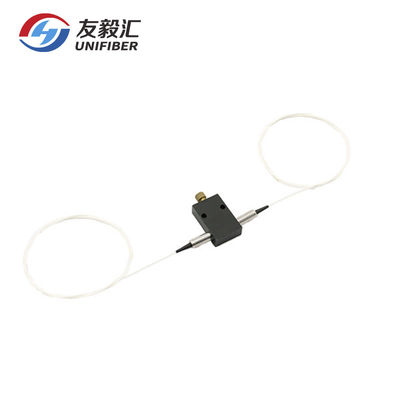

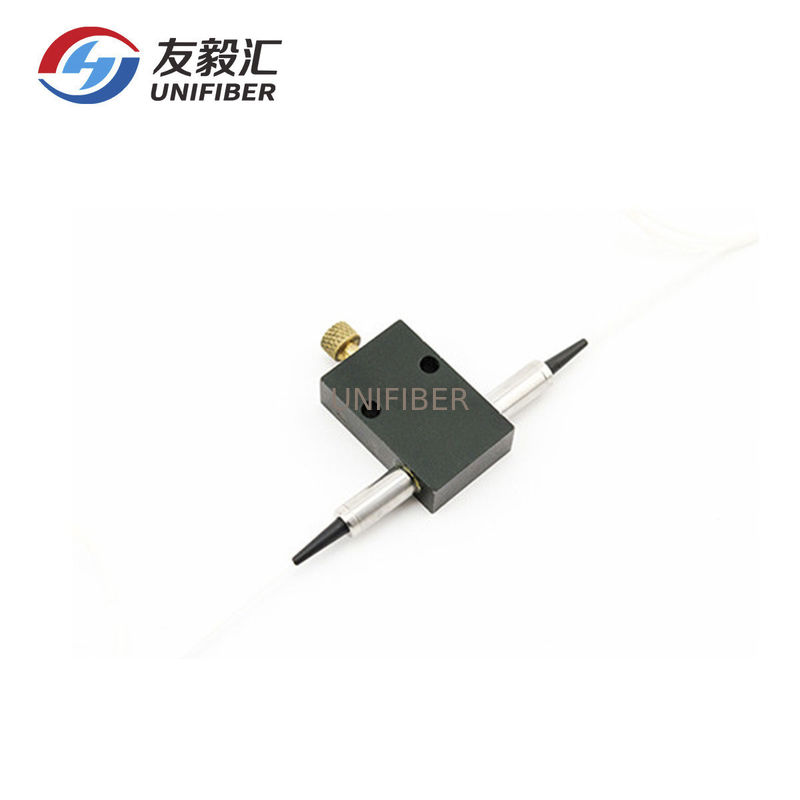

Inline Mechanical Variable Fiber Optic Attenuator 1310nm 1550nm

Large Image : Inline Mechanical Variable Fiber Optic Attenuator 1310nm 1550nm

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	In-Line Mechanical Variable Fiber Optic Attenuator

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable

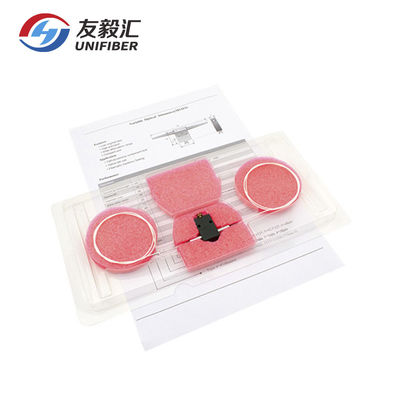

Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	In-Line Mechanical Variable Fiber Optic Attenuator	Wavelength:	1310nm 1550nm
Fiber:	G.652D	Conector:	SC LC FC
Attenuation:	0dB ~ 60dB	Return Loss:	UPC: ≥55 APC: ≥60
High Light:	Inline Fiber Optic Attenuator , Mechanical Variable Fiber Optic Attenuator , 1550nm Mechanical Optical Attenuator

Inline Mechanical Variable Optical Attenuator comprise a dual fiber collimator and a reflection component separated by a linear moveable ND filter. They are used to permit dynamic control of optical power levels in a fiber and can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter.All our attenuators are manufactured according to industry standards and are 100% fully tested.

Features

High Precise attenuation value

Perfect environmental stability and reliability

Low insertion loss and additional loss

Applications

Fiber Optic Communication
DWDM Equipment
Fiber Optic CATV
Local Area Networks (LAN)

Specification

Parameter	Specification
Type(nm)	1310	1550	1310/1550	850/1310
Wavelength (nm)	1310±50	1550±50	1260~1650	850±40 or 1310±40
Attenuation range(dB)	0.8 ~ 60
Original loss(dB)	≤0.8
Return Loss(dB)	≥50			≥30
Fiber type	SMF-28			50/125 or 62.5/125 MM
PDL(dB)	≤0.15
Operating Temperature (℃)	0 ~ + 70
Storage Temperature (℃)	40 ~ + 85
Dimensions (mm)	26 x 18 x 8
