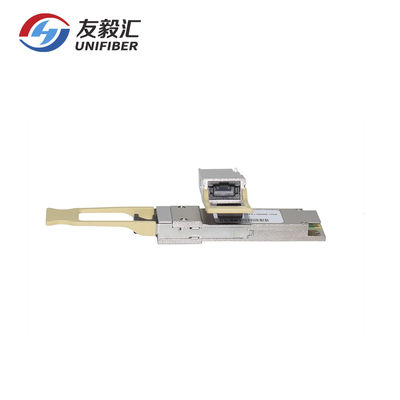

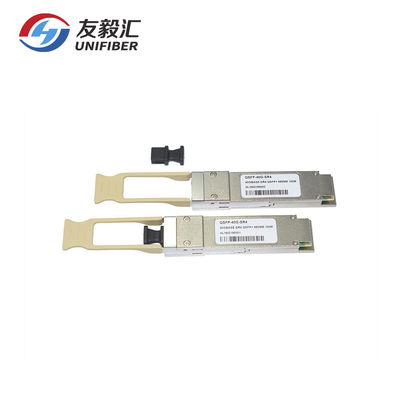

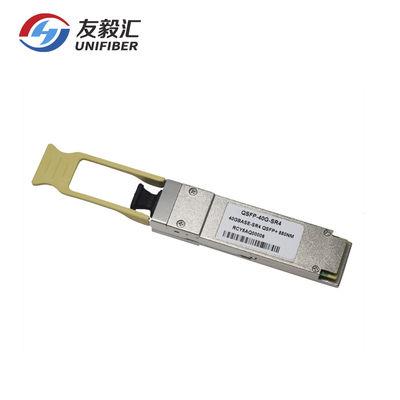

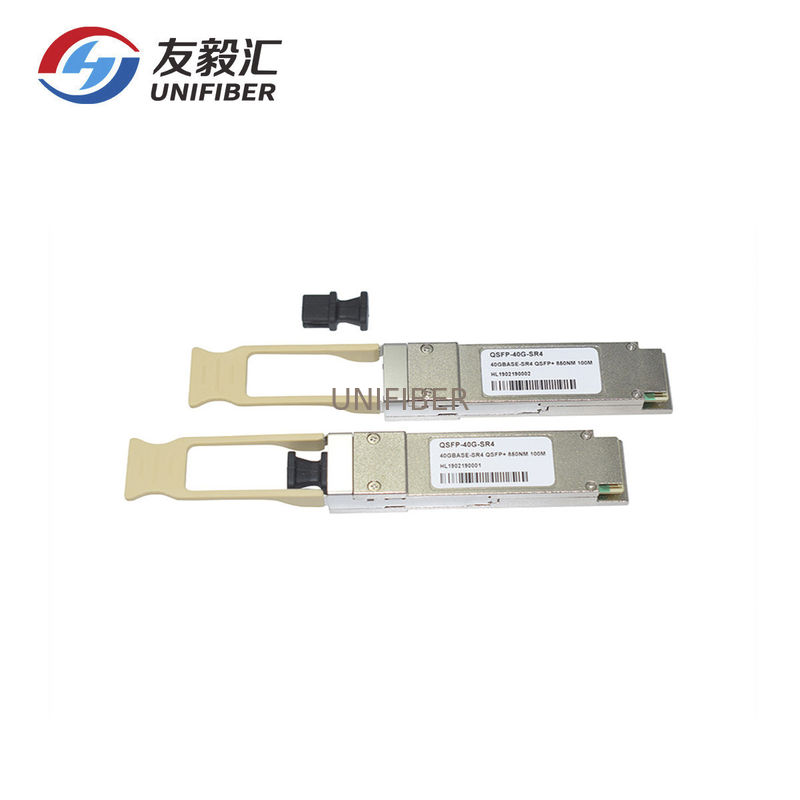

40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode

40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode
40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode 40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode 40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode

Large Image :  40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: CE RoHS FCC
Model Number: 40G QSFP+ SR4 100m MMF 850nm SFP Transceiver
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: Individual package
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 40G QSFP+ SR4 100m MMF 850nm SFP Transceiver Configuration: QSFP+
Wavelength: 850nm Data Rate: 40G
Transmission Distance: 100M Interface: MPO
Certification: CE RoHS FCC Brand: Can Be Customized
High Light:

MMF SFP Fiber Transceiver

,

850nm SFP Fiber Transceiver

,

40G Multimode Fiber Transceiver

40G QSFP+ CSR4 MMF 850nm 400M OM4 multimode fiber transceiver

This product is an integrated transceiver module containing a micro-optic component and semiconductor material, and can implement optical-electrical conversion and electrical-optical conversion. The module is designed as a four-channel, pluggable, parallel, QSFP+ transceiver for 40Gbps fiber communication. Each channel can operate at 10.3125Gbps up to 100m on mpo fiber. And the operating wavelength is 850nm. The optical interface uses an 12 fiber MTP(MPO) connector, and the electrical interface uses a 38 contact edge type connector.UNIFIBER 40G QSFP+ transceivers include SR4, eSR4, LX4, LR4 Lite, IR4 PSM, LR4 PSM, LR4, ER4 and BiDi series.



Features :

Single +3.3V power supply

QSFP MSA compliant
Maximum 1.5W operation power

Digital diagnostic capabilities

4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
Capable of over 400m transmission on OM4 multi-mode ribbon fiber
Operating case temperature:0~70C



Applications :
40G Telecom connections

40G Ethernet
Infiniband 4X SDR DDR QDR





ordering information
Part Number Product Description
QSFP-40G-SR4 QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M
QSFP-40G-CSR4 QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 300M/400M
QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
QSFP-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M
QSFP-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM



40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode 040G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode 1
