Product Details:
Payment & Shipping Terms:
|
| Product: | 2 Port Fiber Optic Socket Panel | Ports: | 2 Port |
|---|---|---|---|
| Connector: | SC/APC | Material: | ABS |
| Application: | FTTH | Drop Cable Length: | 10~100m |
| High Light: | Pre Connectorized FTTH Termination Box,SC APC FTTH Termination Box,FTTH Fiber Optic Socket Panel |
||

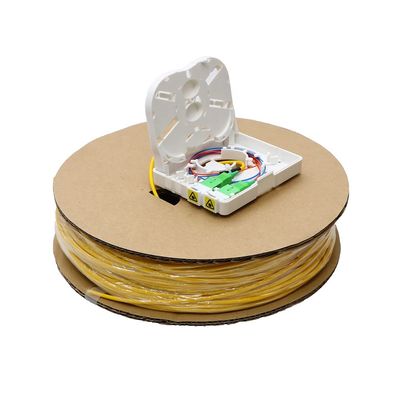

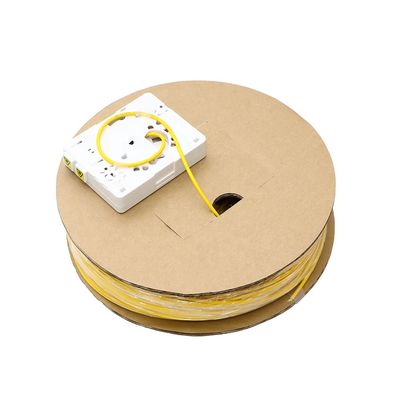

2 Port SC/APC Pre-Connectorized Fiber Optic Wall Outlet is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.
Features
Support termination, splicing and storage for fiber optic cable systems Suitable for two adapters SC or two adapters LC configuration Compatible with G.657 Compact structure and perfect fiber management Engineered fiber routing protect bend radius through the unit to ensure signal integrity Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
Application:
FTTH access network.
CATV Networks
Local Area Networks
Telecommunication Networks
Data communications Networks
Specification
| Parameter | Value |
| Model | SC/APC 1 Port Fiber Wall Outlet Box |
| Outside Dimension | 115*86*23mm |
| Material | Plastic |
| Color | White |
| Storage of fibers | G.657 fiber |
| Splice capacity | 2 Fiber |
| Splice Method | Fusion splice |
| Adaptor type and count | SC,2SC |
| Input cable | 3mm or Ftth cable(2*3mm) |
