Product Details:
Payment & Shipping Terms:
|
| Product: | LC-LC Duplex Fiber Coupler | Connector: | LC Duplex |
|---|---|---|---|
| Fiber Mode: | Single Mode Multimode OM3 OM4 | Structure: | With Flange |
| Package: | Blister Case | OEM: | Support |
| High Light: | LC LC Duplex Fiber Coupler,Multimode Duplex Fiber Coupler,OM4 Optical Fiber Coupler |
||
Adapter is a mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve that holds two ferrules together. They are used to connect optical fiber connectors of the same type, such as FC, SC, LC, ST, MU, MTRJ, D4, DIN, MPO ect, widely used in optical fiber communications equipment, measuring appliance and so on, the performance stably reliable.
Features
Low insertion loss,high return loss
Excellent Temperature stability
Good repeatability and exchangeability
Excellent mechanical endurance
Strict curing time and temperature control
Strict testing standards and methods for quality
Environment protection (ROHS Compliance)
The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
100% NEW raw material and well quality control ensure the best life time.
Applications
Telecommunication Networks
Local Area Network
FTTH and FTTx
Fiber Optic Sensors
Testing Instruments
CATV System
Performance Specifications

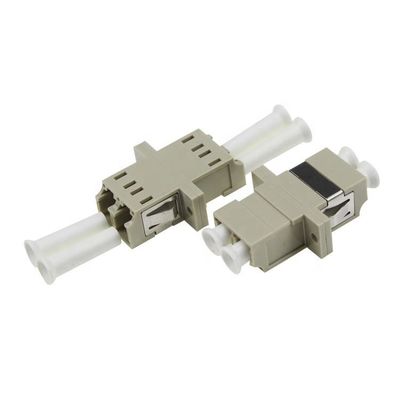

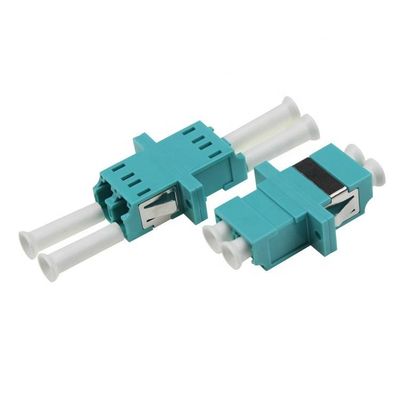

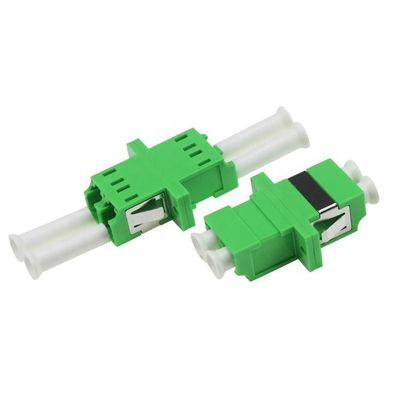

| Product Name | Singlemode/Multimode LC-LC Duplex Fiber Coupler |
| Modle Number | LC DX Welding Adapter Symmetry-Type |
| Inserion Loss | ≤0.3dB |
| Durability | >1000 times |
| Operating Temp | -40~70°C |
| Material | Plastic |
| Application | FTTx,LAN,CATV,Telecom |
| Certification | RoHS,SGS,CE |
| Connector Type | LC-LC |
| Polish Type | UPC;APC |
| Fiber Mode | Singlemode; Multimode; OM3; OM4;OM5 |

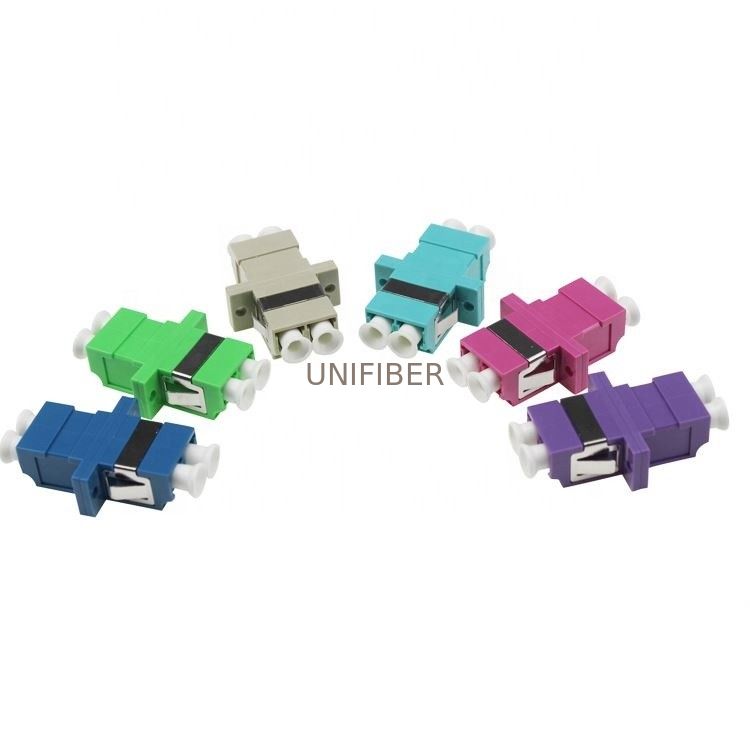

| Color | SM:Blue,Green MM:Beige OM3:Aqua OM4:Violet OM5:Lime green |
| Core | Duplex |
| Flange | with flange/with ear; |
| Form of sale | Neutral/OEM/ODM |
| Use | Fiber connection |
| Custom Design | welcom |
| Sample Lead Time | within 7 days after confirmation |
| Advantage | Best price,best service |
| Payment Terms | T/T in advance; Others(subject to negotiation between both parties) |
| Features | •Excellent Temperature stability •Low insertion loss ,high return loss •Good repeatability and exchangeability •Excellent mechanical endurance •Customer defined specifications •Compliant with Telcordia,TIA/EIA and IEC |
