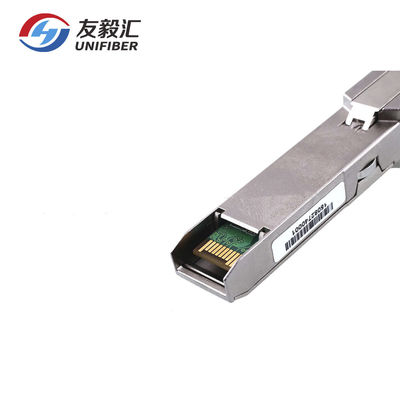

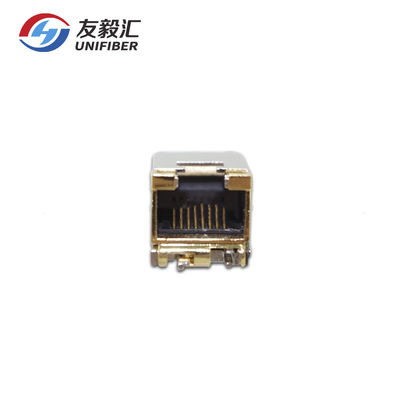

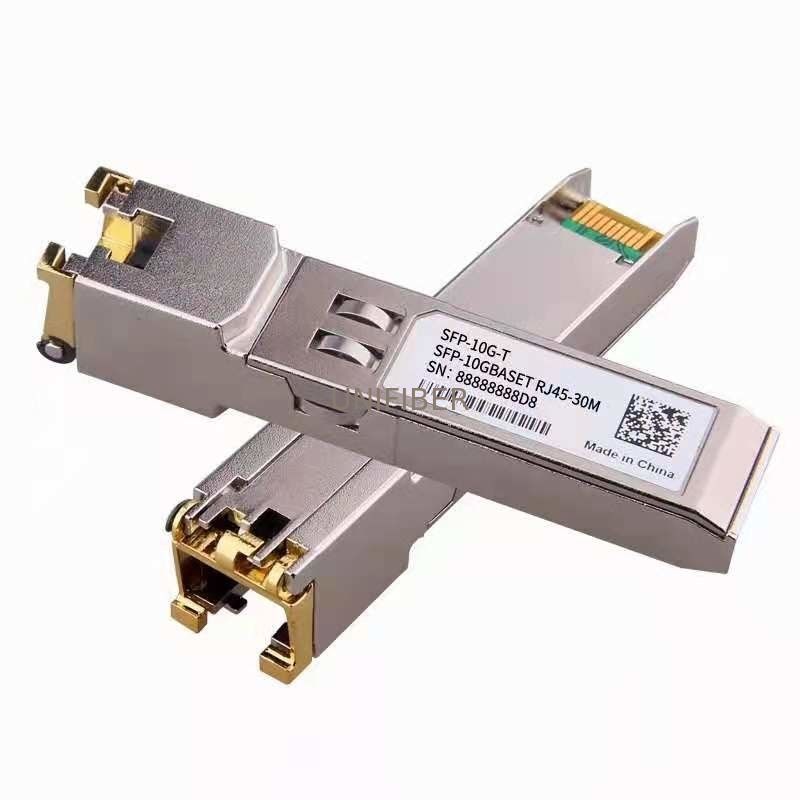

RJ45 10G Copper SFP+ Ethernet Optical Transceiver Module 30m 50m 100m

RJ45 10G Copper SFP+ Ethernet Optical Transceiver Module 30m 50m 100m

Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3 . The 1000BASE-T physical layer IC (PHY) can be accesse via I2C, allowing access to all PHY settings and features.

Product Features
Supports Links up to 30m using Cat 6a/7 Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3az Compliant
Low Power Consumption (2.5W MAX @ 30m)
Fast Retrain EMI Cancellation Algorithm
Low EMI Emissions
I2C 2-Wire Interface for Serial ID and PHY Register Access
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic Features
Cable Length Measurements
Opens/Shorts
Robust Die Cast Housing
Bail Latch Style ejector mechanism
Unshielded and Shielded cable support

Applications
Gigabit Ethernet
Router/Server interface

Switch to Switch interface

Fiber Channel
Switched backplane applications

Specification:
