Product Details:
Payment & Shipping Terms:
|
| Connector Type: | SC/UPC-SC/UPC | Cable Jacket: | PVC/OFNR)/LSZH |
|---|---|---|---|
| Fiber Count: | 32 Core | Breakout Diameter: | 3.0mm |
| Fan-out Length: | 0.3/0.5m Or Customized | Fiber Mode: | Single Mode |

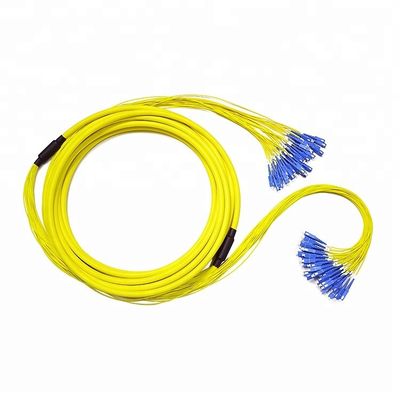

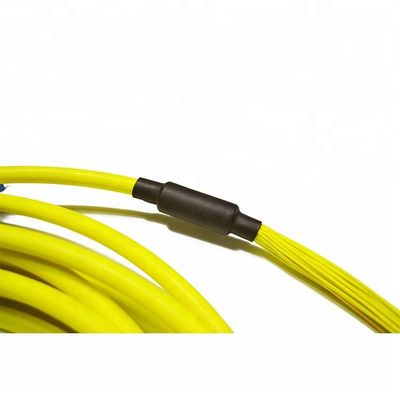

| Product: | 32 Core Indoor Pre-terminated Multi-fiber Breakout Fiber Optic Cable SC/UPC-SC/UPC | ||
| Highlight: | SC/UPC Pre Terminated Cables,1550nm Pre Terminated Cables,LSZH Multi Fiber Breakout Cable |
||
China Supplier Pre terminated multi fiber cable 24 core Single mode SC upc to FC upc patch cord
Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. It always come as 4~144core with LC/SC/FC/ST connectors and 0.9, 2.0, 3.0 break-out legs.
Features
4-48 core 0.9, 2.0, 3.0 break-out leg available
Various connectors are available - LC/SC/FC/ST
Quick & easy installation without special skills, reducing installation time.
Protect the connectors and prevent the cable from twisting during the pull.
Applications
High density cable wiring system
Local/wide area networks
High integrated equiement and devices
Switching between trunk line and distribution line
Specifications
| Connector | SC,LC,FC,ST or Customized | Breakout OD(mm) |
2.0mm
|
| Fiber Mode | 9/125μm | Jacket Color | SM:Yellow/Blue/White; |
| Polish | PC,UPC,APC | Wavelength | SM:1310/1550nm |
| Cable Type | Multi-fibers Breakout 2.0mm unit cable | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss |
SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM P ≥ 35dB(min) |
Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
