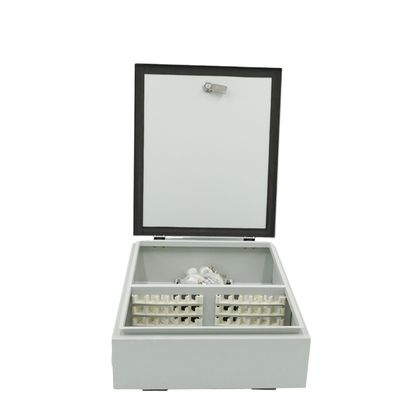

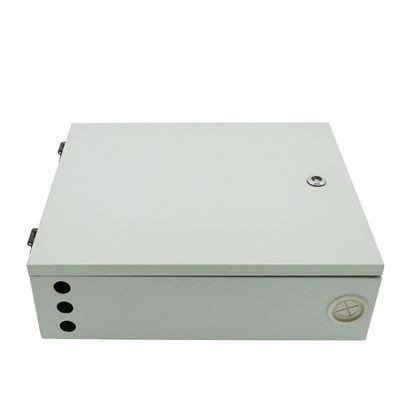

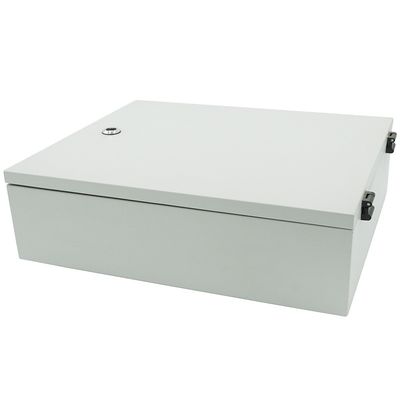

CATV LC ST Fiber Optic Cabinet 12/24/48 Ports FTTH Wall Mount

CATV LC ST Fiber Optic Cabinet 12/24/48 Ports FTTH Wall Mount
CATV LC ST Fiber Optic Cabinet 12/24/48 Ports FTTH Wall Mount CATV LC ST Fiber Optic Cabinet 12/24/48 Ports FTTH Wall Mount CATV LC ST Fiber Optic Cabinet 12/24/48 Ports FTTH Wall Mount

Large Image :  CATV LC ST Fiber Optic Cabinet 12/24/48 Ports FTTH Wall Mount

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: Wall mount fiber optic cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: carton box
Delivery Time: 5-7 days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: Wall Mount Fiber Optic Cabinet 12/24/48 Ports No Of Ports: 12/24/48 Ports
Connectors: SC/FC/LC/ST Material: Cold Roll Steel
Color: Light Gray Installation: Wall Mounting
High Light:

LC ST Fiber Optic Cabinet

,

CATV Fiber Optic Cabinet

,

FTTH Fiber Optic Distribution Frame

Outdoor wall type fiber optic distribution frame is mainly used for connecting the outdoor optical cables, optical patch cord and optical pigtails. It is made of cold-rolling steel sheet, static spreading-plastic, small dimension and exquisite, easy for operation. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.



Features

With steel plates can manage both single fiber and ribbon & bundle fiber cables
FC, LC, SC, ST output interfaces optional
Large working space to integrate the pigtail, cables and adapters
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation
Special design ensures the excess fiber cords and pigtails in good order



Application
Telecommunications subscriber loop

Fiber to the home (FTTH)
LAN/ WAN
CATV



Specification

Type Size(mm) H*W*D Max capacity Outer carton dimension Outer cartion weight
GP(05)A-24 455*405*80 24 500*450*490/4pcs 29.5
GP(05)A-48 455*405*120 48 500*450*490/3pcs 25.3
GP(05)A-72 455*405*150 72 500*450*390/2pcs 19.5
GP(05)B-48 455*405*120 48 500*450*490/3pcs 27
GP(05)B-72 455*405*150 72 500*450*390/2pcs 20.5
GP(05)A-24A 350*350*80 24 405*405*605/5pcs 20.8
GP(05)B-24B 455*405*80 24 500*450*490/4pcs 29
GP(05)C 350*300*80 12 405*355*605/5pcs 19.5
GP(05)D 350*300*80 24 405*355*605/5pcs 19.5
