| Product: | 144 Fiber Single Mode Pre Terminated Cable Assemblies | Connector Type: | LC/UPC To LC/UPC |
|---|---|---|---|
| Cable Jacket: | OFNR | Fiber Count: | 144 Fiber |
| Breakout Diameter: | 0.9mm Loose Tube | Fan-out Length: | 0.5m |
| Highlight: | 144f Pre Terminated Multi Fiber Cables,OFNR Pre Terminated Multi Fiber Cables,LC UPC Pre Terminated Cable |
||

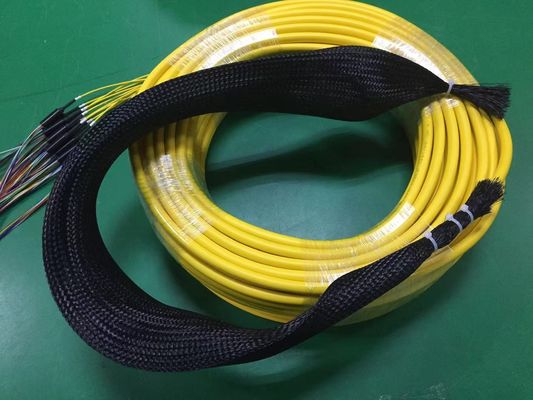

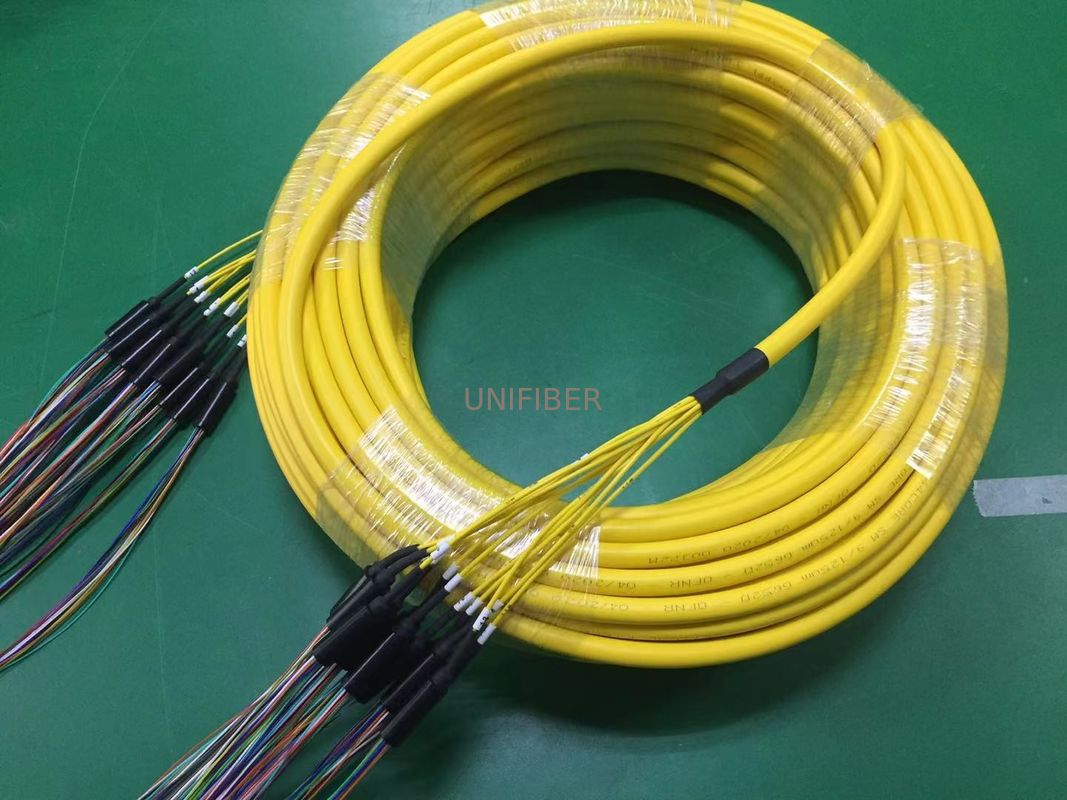

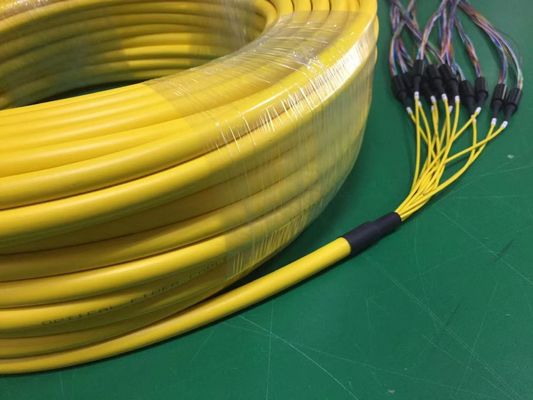

144 multi-fiber single mode pre terminated trunk cable assemblies is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes.we can custom make 2~144 fiber patch cables with LC/SC/FC/ST connectors.
Features
high fiber density,Small volume,
Low insertion loss and high reflection loss
2~144 core 0.9, 2.0, 3.0 break-out leg available
High reliability and Excellent mechanical capability
Save Duct Space,Cost and Installation time
Easy Push/Pull Operation
Applications
High density cable wiring system
High integrated equipment and devices
Local/wide area networks
Telecommunication
Data Center Solutions
Switching between trunk line and distribution line
Specifications
| Product | 144 multi-fiber single mode pre terminated trunk cable assemblies OFNR Jacket |
| Pre-Terminated Connector | LC/UPC to LC/UPC |
| Polished | UPC or APC |
| Fiber Count | 4 8 12 24 48 96 144 Fibers |
| Fiber Mode | SM OM1 OM2 OM3 Om4 |
| Jacket Color | Yellow Aqua orange |
| Breakout OD | 0.9mm or 2.0mm |
| Insertion Loss | < 0.3 DB |
| Return Loss | >50db |
| Jacket Materials | PVC LSZh |
| Product Keywords | 0.9mm pvc jacket 9/125 Single mode Riser and Plenum Fiber Trunk Cables |
