Product Details:
Payment & Shipping Terms:
|

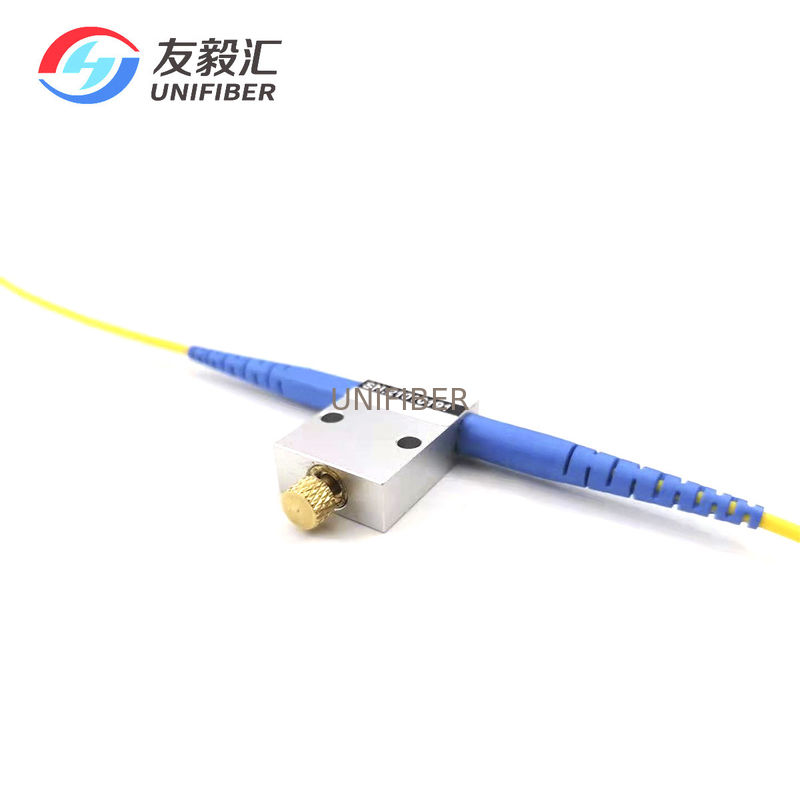

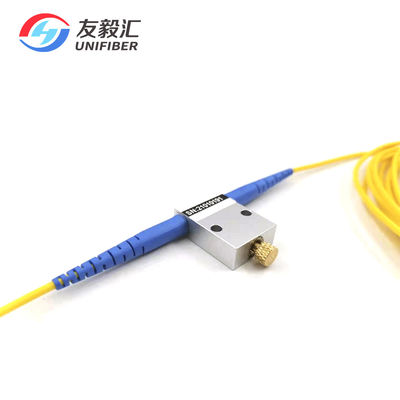

| Product: | 1310/1550nm Manual Adjustable Inline Variable Fiber Optic Attenuator(MVOA) | Fiber Mode: | Single Mode |
|---|---|---|---|
| Wavelength: | 1310/1550nm | Attenuation Range: | 0 ~ 60dB |
| Attenuation Accuracy: | ±0.8dB | Max Optical Input Power: | 200mW |
| Pigtail Style:: | 3.0mm | Connector: | FC/UPC |
| Adjustment Type: | Hand Adjustment Or Screw Adjustment | ||
| High Light: | Inline Variable Fiber Optic Attenuator,Manual Adjustable Fiber Optic Attenuator,MVOA Single Mode Optic Attenuator |
||
High Precise Attenuation in-line Variable Optical Attenuator comprise a dual fiber collimator and a reflection component separated by a linear moveable ND filter. They are used to permit dynamic control of optical power levels in a fiber and can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter.All our attenuators are manufactured according to industry standards and are 100% fully tested.
Features
Wide attenuation range (variable)
High Precise attenuation value
Perfect environmental stability and reliability
Low additional loss
Applications
Fiber Optic Communication
DWDM Equipment
Fiber Optic CATV
Local Area Networks (LAN)
Specification
| Parameter | Specification | |||
| Type(nm) | 1310 | 1550 | 1310/1550 | 850/1310 |
| Wavelength (nm) | 1310±50 | 1550±50 | 1260~1650 | 850±40 or 1310±40 |
| Attenuation range(dB) | 0.8 ~ 60 | |||
| Original loss(dB) | ≤0.8 | |||
| Return Loss(dB) | ≥50 | ≥30 | ||
| Fiber type | SMF-28 | 50/125 or 62.5/125 MM | ||
| PDL(dB) | ≤0.15 | |||
| Operating Temperature (℃) | 0 ~ + 70 | |||
| Storage Temperature (℃) | 40 ~ + 85 | |||
| Dimensions (mm) | 26 x 18 x 8 | |||
Contact Person: Kerry Sun
Tel: +86-135-9019-2305
