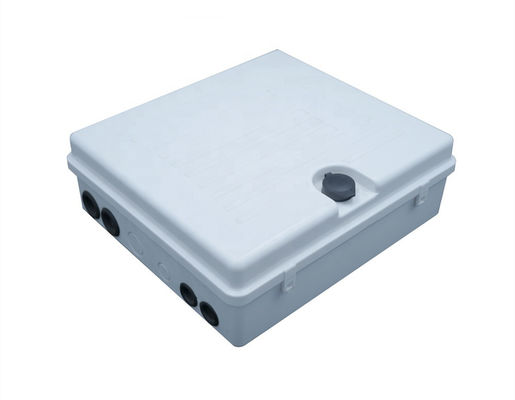

IP55 FTTH Outdoor Optical Distribution Box 24 48 Ports 500N For CATV

24 48 ports FTTH Outdoor Optical Distribution Box Widely used in FTTH access networks, telecommunication networks, CATV networks, local area networks. It is used for the connection of cable and fiber optic communication devices after cable reaches residential area. It can be mounted on the wall or pole.

Feature:
1. The box is made of high quality plastic synthetic material, anti-aging, anti-UV;
2. Waterproof lock, can be used indoor and outdoor;

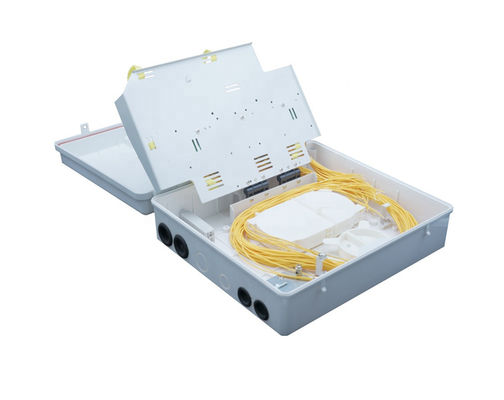

3. Bi-layer structure, bottom for fiber splicing and upper layer for fiber distribution;
4. The middle plate can be flipped, the butterfly fiber optic cable can be stored, and the outlet is equipped with locking
device for butterfly cable, which is convenient to maintain;

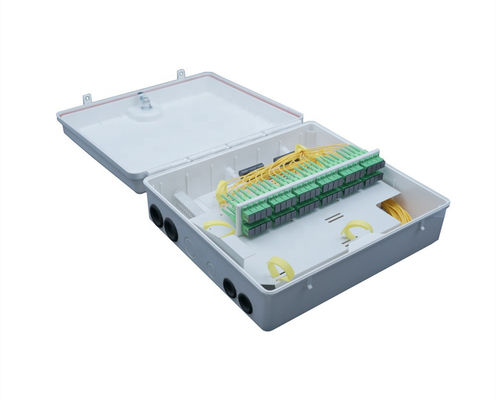

5. Configured with 24-port or 48-port adapter rack;
6. Maximum 2 splice trays for satisfying different connection.

Technical index:
* Optical fiber radius of curvature: ≥40mm
* Splice tray additional loss: ≤0.01dB
* Working temperature: - 40℃ ～ + 60℃
* Compressive strength: ＞ 500N
* Protection level: IP55
