Product Details:
Payment & Shipping Terms:
|
Product: | 1x16 1x32 Waterproof Optical Splitter Distribution Box | Material: | ABS+PC |
---|---|---|---|
Max Capacity: | 64 | Splitter: | 1:16(2pcs) / 1:32 (2pcs) |
Installation: | Wall Mounting(standard)/Pole Mounting(optional) | Application: | FTTH |
High Light: | 1x32 Waterproof Optical Splitter,CATV Networks Waterproof Optical Splitter,64f Wall Mounted Distribution Box |

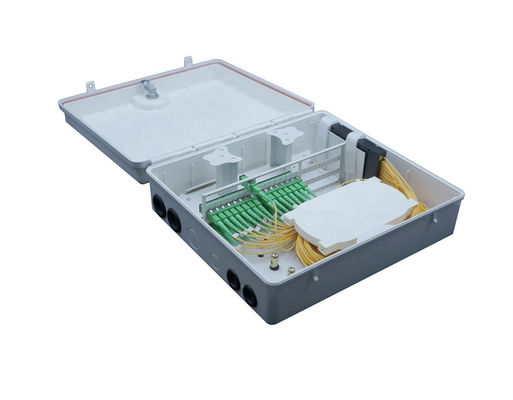

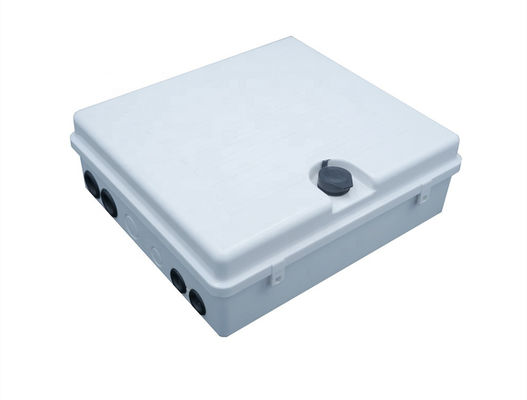

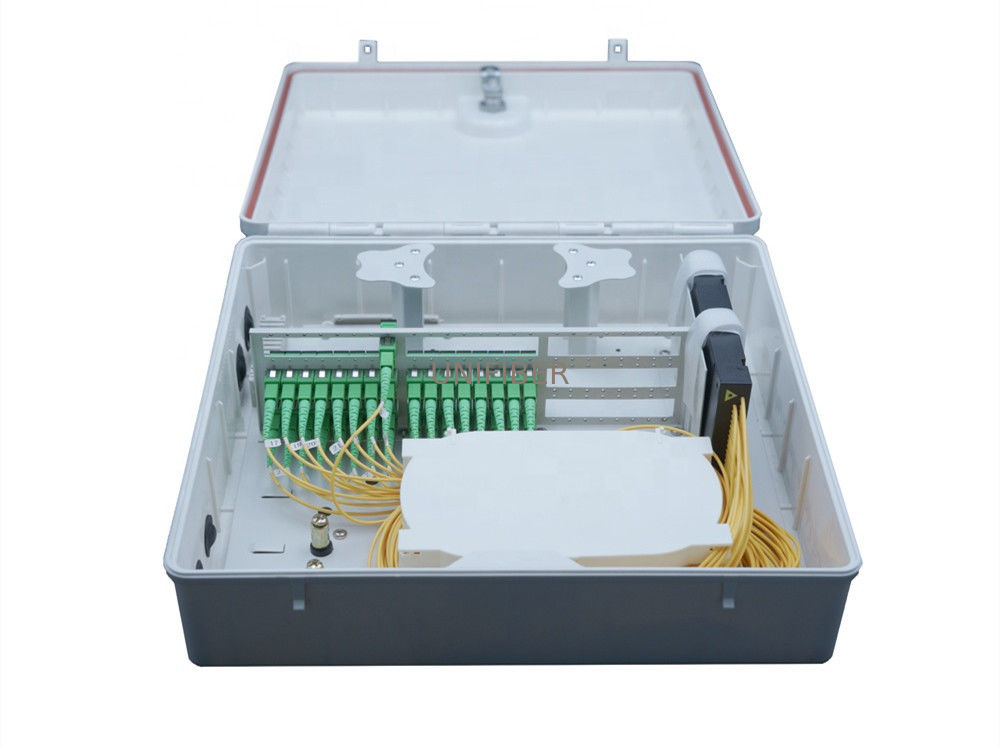

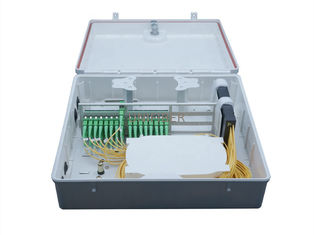

1x16 1x32 Waterproof Optical Splitter Distribution Box Widely used in FTTH access networks, telecommunication networks, CATV networks, local area networks. It is used for the connection of cable and fiber optic communication devices after cable reaches residential area. It can be mounted on the wall or pole.
Feature:
1. The box is made of high quality plastic synthetic material, anti-aging, anti-UV;
2. Waterproof lock, can be used indoor and outdoor;
3. Bi-layer structure, bottom for fiber splicing and upper layer for splitting fiber wiring;
4. The middle plate can be flipped, the butterfly fiber optic cable can be stored, and the outlet is equipped with locking
device for butterfly cable, which is convenient to maintain;
5. Configured with 72-port adapter rack, support up to 2 splice trays;
6. Can install 1:16 or 1:32PLC box type optical splitter.
Technical index:
* Optical fiber radius of curvature: ≥40mm
* Splice tray additional loss: ≤0.01dB
* Working temperature: - 40℃ ~ + 60℃
* Compressive strength: > 500N
* Protection level: IP55
