Product Details:
Payment & Shipping Terms:
|

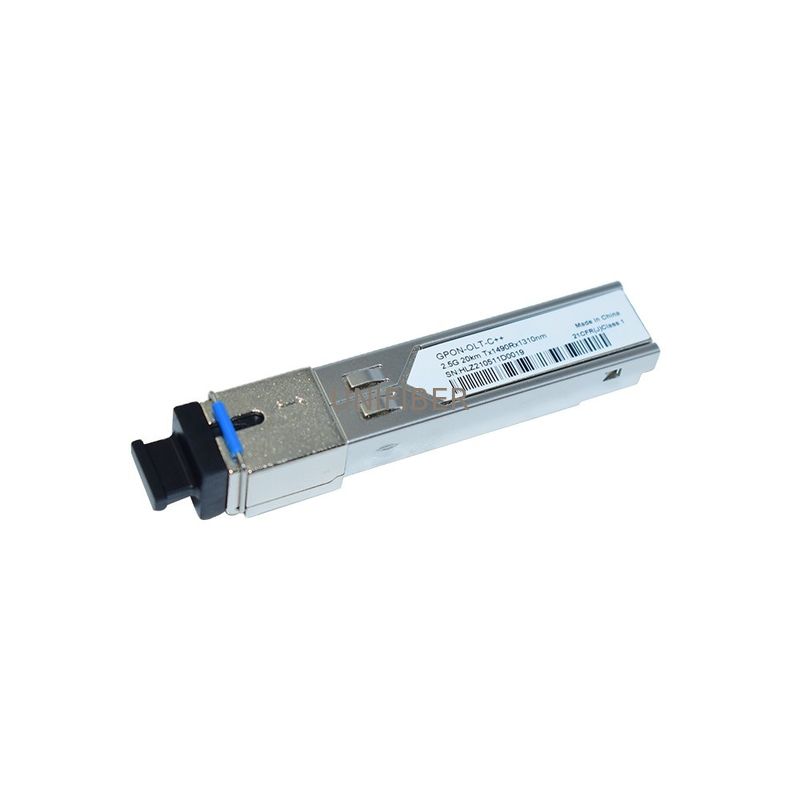

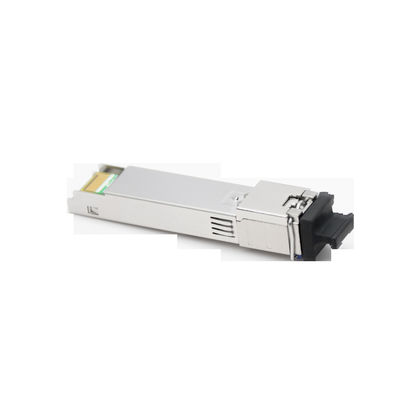

| Product: | 1.25G/2.5G GPON OLT C++ BIDI SFP Optical Module | Data Transfer Rate: | 2.5Gb/s 1.25Gb/s |
|---|---|---|---|
| Distance: | 20KM | Wavelength: | Tx1490nm/Rx1310nm |

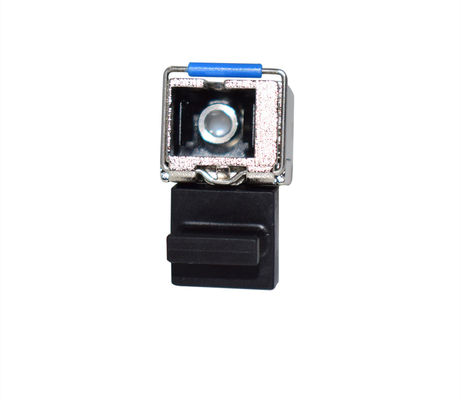

| Type: | Single Fiber | Connector: | SC |
| High Light: | 20km BIDI SFP Optical Module,Rx1310nm SFP Optical Module,GPON OLT Optical Fiber Transceiver |
||
• 1.25Gb/s up 2.5Gb/s down serial optical interface compliant to 802.3AH specifications small form factor pluggable module “SFP”
•1490 nm DFB transmitter, 1310 nm APD photo detector BURST receiver
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
• Operating case temperature: 0 to 70 °C or -40 to 85 °C
• All-metal housing for superior EMI performance Low power consumption
• Cost effective OLT solution,
• RoHS compliant
| Parameter | Unit | Min. | Typical | Max. |
| Storage Temperature | °C | -40 | 85 | |
| Operating Case Temp for C-temp | °C | 0 | 70 | |
| Operating Relative Humidity | % | 5 | 95 | |
| Power Supply Voltage | V | 3.15 | 3.3 | 3.45 |
| Supply Current | mA | 600 | ||
| Bit Rate for Tx | Gbps | 2.488 | ||
| Bit Rate for Rx | Gbps | 1.244 | ||
