Product Details:
Payment & Shipping Terms:
|
| Product: | Single Mode In-Line Variable Fiber Optical Attenuator 1310/1550nm | Adjustment Type: | Hand Adjustment Or Screw Adjustment |
|---|---|---|---|
| Attenuation Range: | 0 ~ 60dB | Wavelength: | 1310/1550nm |
| Attenuation Accuracy: | ±0.8dB | Max Optical Input Power: | 200mW |
| Pigtail Style:: | 3.0mm Loose Tube | Connector: | FC/UPC |
| High Light: | 200mW Fiber Optical Attenuator,FC UPC Fiber Optical Attenuator,1550nm Single Mode Fiber Attenuator |
||

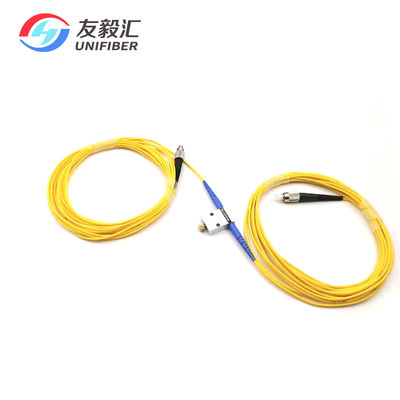

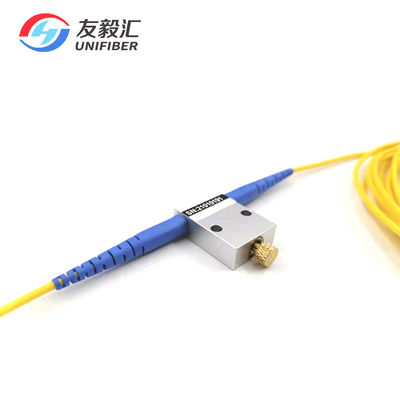

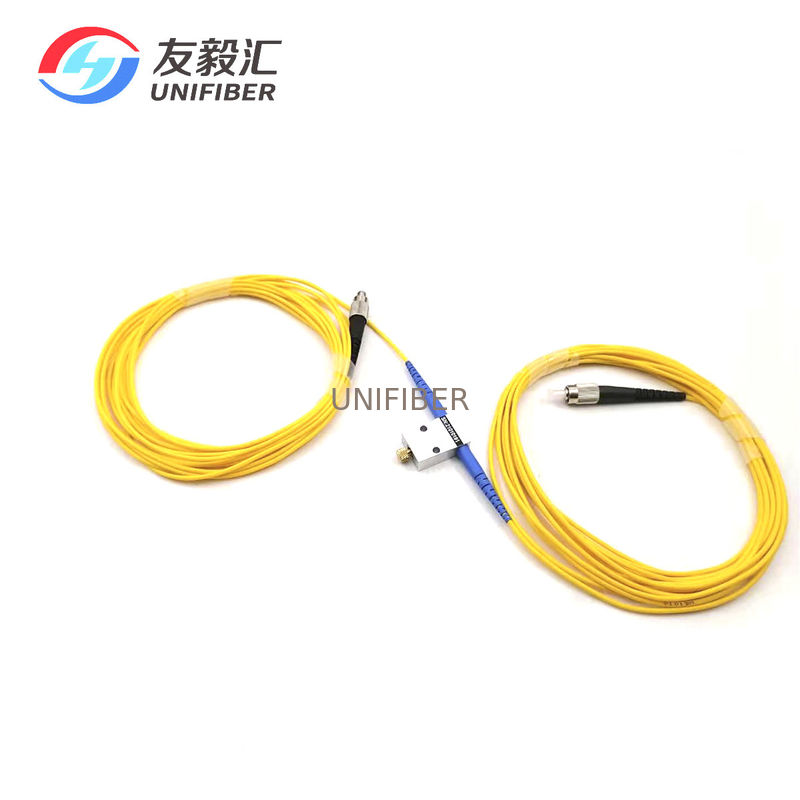

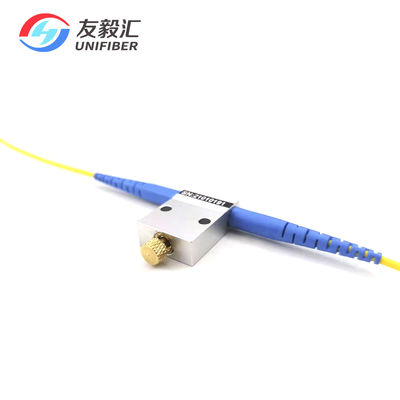

In-line fiber optical attenuator utilizes fused fiber to achieve attenuation. Each cord is custom built to accommodate up to 10 meters of cable and the connectors styles of your choice, each attenuator is supplied with its individual test record sheet.
Features
High Precise attenuation value
Wide attenuation range (variable)
Perfect environmental stability and reliability
Low insertion loss and additional loss
Compact in size
Applications
DWDM Equipment
Fiber Optic Communication
Local Area Networks (LAN)
Fiber Optic CATV
Specification
| Parameter | Specification | |||
| Type(nm) | 1310 | 1550 | 1310/1550 | 850/1310 |
| Wavelength (nm) | 1310±50 | 1550±50 | 1260~1650 | 850±40 or 1310±40 |
| Attenuation range(dB) | 0.8 ~ 60 | |||
| Original loss(dB) | ≤0.8 | |||
| Return Loss(dB) | ≥50 | ≥30 | ||
| Fiber type | SMF-28 | 50/125 or 62.5/125 MM | ||
| PDL(dB) | ≤0.15 | |||
| Operating Temperature (℃) | 0 ~ + 70 | |||
| Storage Temperature (℃) | 40 ~ + 85 | |||
| Dimensions (mm) | 26 x 18 x 8 | |||
