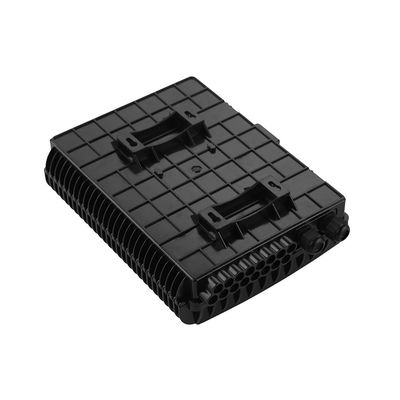

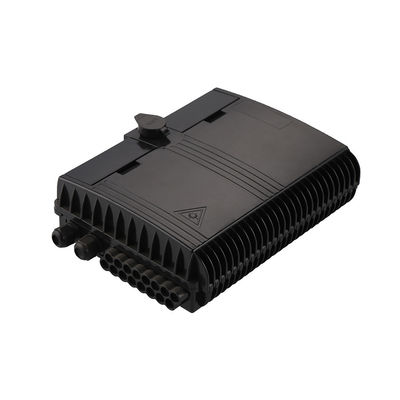

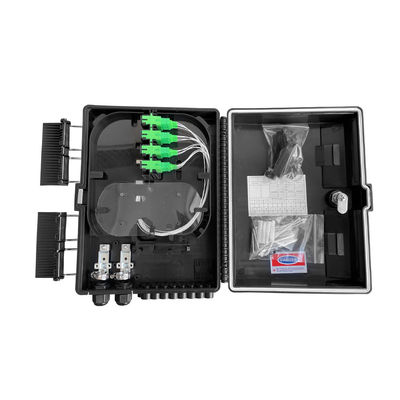

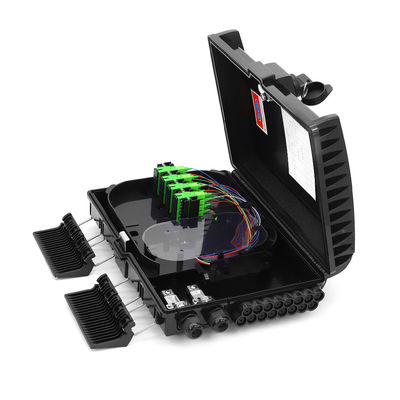

1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables

1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables
1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables 1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables 1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables 1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables

Large Image :  1x16 PLC SC APC Fiber Optic Termination Box 16C 2 Inlet 16 Outlet For Drop Cables

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: FTTH terminal Nap Box 16 core
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: FTTH Terminal Nap Box 16 Core Cable Outlets: 2 Inlet And16 Outlet
Splitter: 1x8 Or 1x16 PLC Splitter Connector: SC/APC
Material: ABS+PC Protection Grade: IP65
High Light:

SC APC Fiber Optic Termination Box

,

1x16 PLC Fiber Optic Termination Box

,

16C Fiber Optic Distribution Box

Optic Fiber Terminal Closure optic provides space and protection for the fiber optic cable splicing and joint. Optic Fiber Terminal Closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.



Features

Water-proof design with IP-65 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
2 pcs of 1*8 Splitter can be installed as an option.
Efficient cable management.16 ports cable entrance for drop cable



Application
Widely used in FTTH access network.
Telecommunication Networks
CAMax.Capacity(bunchy)TV Networks
Data communications Networks
Local Area Networks



Specification

Product name
16 Core Fiber Optic Distribution Box
Protection grade
IP65
Operating Temperature
-40℃~60℃
Product Size
325*250*120 mm
Working environment
Indoor and Outdoor wall-mounted
Packing quantity
2 inlet,16 outlet for drop cables
Function
FTTH network building
Color
Black
Features
wet-proof,water-proof
Gross proudct
1.58 kg
