CATV Metro SC APC Shutter Fiber Optic Adapter ROHS For Laser Protection

Large Image : CATV Metro SC APC Shutter Fiber Optic Adapter ROHS For Laser Protection

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	SC/APC Shutter Fiber Optic Adapter

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	Single Mode Simplex SC/APC Shutter Fiber Optic Adapter	Connector:	SC/APC
Structure:	With Shutter Cover	Function:	Laser Protection
Name:	Fiber Optic Adapter	Application:	Telecommunication Networks
High Light:	CATV Metro Fiber Optic Adapter , SC APC Shutter Fiber Optic Adapter , ROHS Single Mode Fiber Adapter

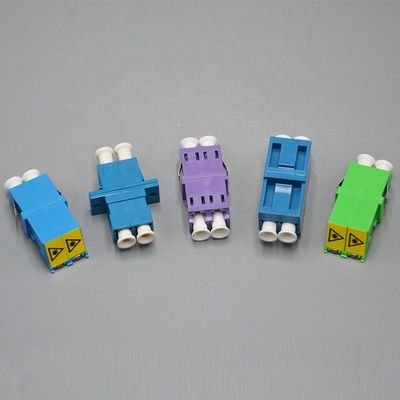

The shutter fiber optic adapter are mainly available with LC and SC plastic version, they are come with or without flange. It provides eye safety by attenuating laser light when the mated connector is removed.

Feature
Low insertional loss and back reflection loss
High prcision alignment
Use in Single-mode or Multimode applications

Applications
CATV
Telecommunication networks
Metro
Data processing networks

Parameter	Unit	LC, SC, FC, ST
		SM			MM
		PC	UPC	APC	PC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85
