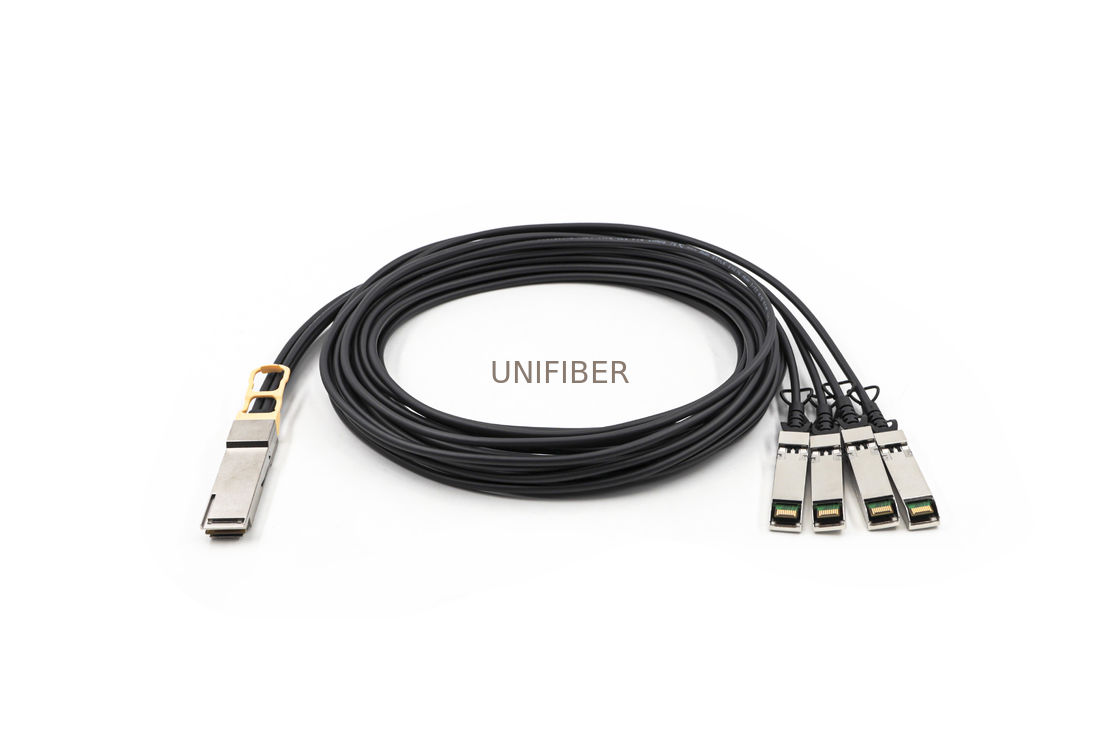

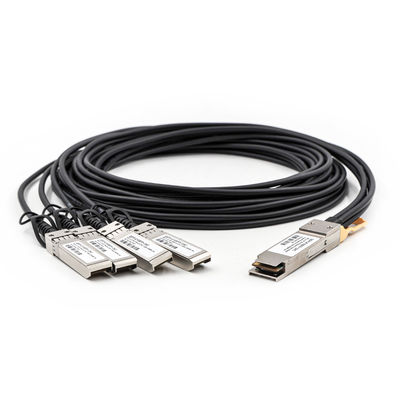

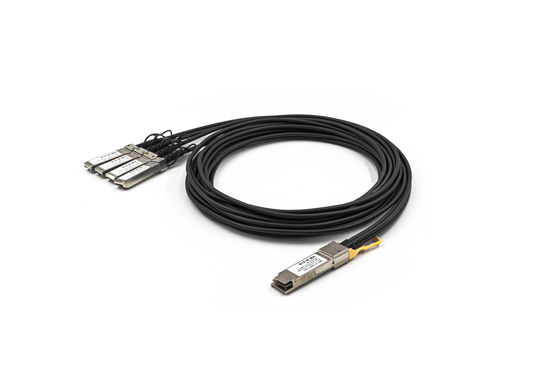

10Gbps 24AWG Direct Attach Copper Cable 7m QSFP DAC Cable

Large Image : 10Gbps 24AWG Direct Attach Copper Cable 7m QSFP DAC Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	40G QSFP+ DAC Cable

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	40G QSFP DAC Cable	Wire AWG:	24/28/30AWG
Connector:	QSFP+ To 4*SFP+	Data Rate:	10Gbps
Transmission Distance:	Up To 7m	Application:	Data Center
Highlight:	24AWG Direct Attach Copper Cable , 10Gbps Direct Attach Copper Cable , 7m QSFP DAC Cable

High Speed 40G QSFP+ to 4×10G SFP+ Direct Attach Cable copper cable assemblies are a low cost alternative for short reach 4X applications. They are designed to be fully compatible in form factor and optical/electrical connections according to the QSFP Multi-Source Agreement.QSFP+ connectors provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of aggregate 40Gbps as specified for QSFP+. These interconnects have three times the density of SFP+ interconnects (MSA) and have been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Application

10G/40G Ethernet

InfiniBand, Fiber Channel 4G/8G/10G

Sonet Multiplatform support

High Performance Computing Clusters

High End Servers

Metro Network Switch/Cross Connect

Features

* 4-Channel Full Passive Copper Cable Transceiver

* QSFP+ conforms to the Small Form Factor SFF-8436and SFF-8431

* Support for multi-gigabit data rates up to 10.5Gbps

* Data rates backward compatible to 1Gbps

* Maximum aggregate data rate: 40 Gbps (4 x 10Gbps)

* Hot-DensityQSFP 38-PIN footprint

* I/O Connector designed for high speed differential signal applications

* Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance

* Compatible with industry standard SFP cages +Switches

* Temperature Range: 0~ 70 °C

* RoHS-6 Compliant

Compliant

Compliant with electrical standards IEEE 802.3ba

Compliant with mechanical standard SFF-8436 and SFF-8431

Compliant with EEPROM standard SFF-8472

RoHS Compliant


			Series
			Product Description

			40G DAC
QSFP+ to 4SFP+

			QSFP+ to 4SFP+, 40Gb/s, DAC, 0.5M, AWG30

			QSFP+ to 4SFP+, 40Gb/s, DAC, 1M, AWG30

			QSFP+ to 4SFP+, 40Gb/s, DAC, 2M, AWG30

			QSFP+ to 4SFP+, 40Gb/s, DAC, 3M, AWG30

			QSFP+ to 4SFP+, 40Gb/s, DAC, 4M, AWG26

			QSFP+ to 4SFP+, 40Gb/s, DAC, 5M, AWG26

Tag:

dwdm sfp transceiver,

sfp optical transceiver,

cwdm sfp transceiver
