C Band 1530~1565 MEMS Variable Optical Attenuator EDFA For DWDM Channel

Name: C Band 1530~1565 MEMS Variable Optical Attenuator EDFA For DWDM Channel
Brand: UNIFIBER-OEM
SKU: MEMS Variable Optical Attenuator
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (102 reviews)

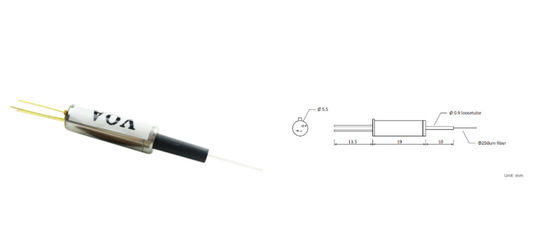

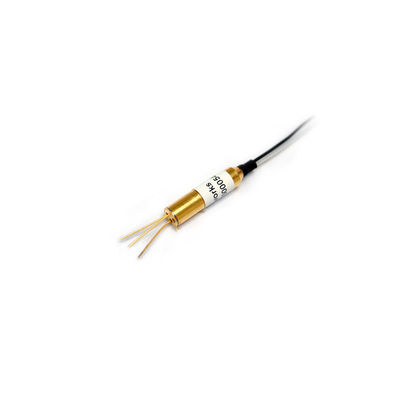

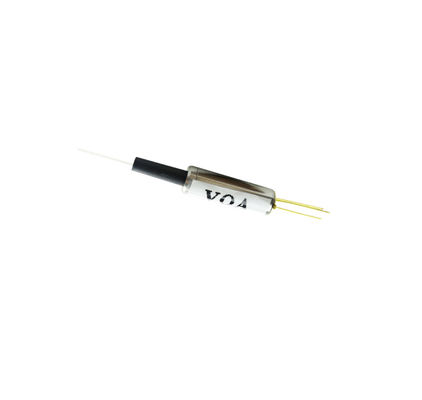

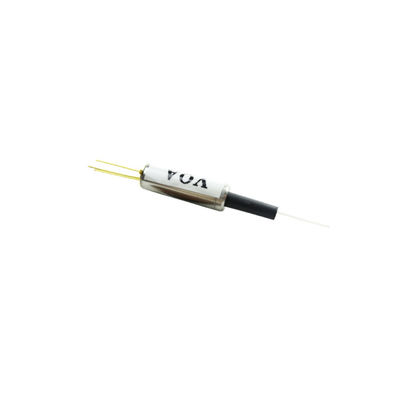

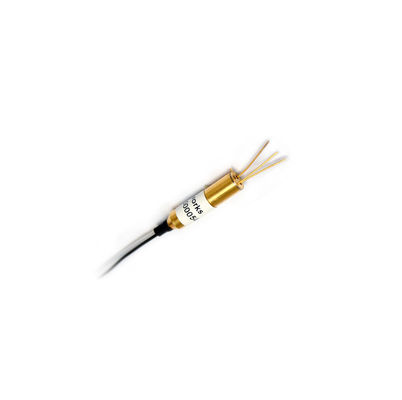

Large Image : C Band 1530~1565 MEMS Variable Optical Attenuator EDFA For DWDM Channel

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	MEMS Variable Optical Attenuator

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	MEMS Variable Optical Attenuator	Fiber:	SMF 28e+ Bare Fiber
Wavelength:	C-band	Connector:	Customized
Application:	DWDM Channel Equalization/EDFA Power Equalization	Connector:	Per Customer’s Choice
High Light:	DWDM Channel Variable Optical Attenuator , 1565 MEMS Variable Optical Attenuator , EDFA Variable Optical Attenuator

Key Features

♦ Low Insertion Loss

♦ Low Power Consumption

♦ Compact Size

♦ Fast Response Time

♦ High Stability and Reliability

Applications

♦ DWDM Channel Equalization

♦ EDFA Power Equalization

♦ Optical Receiver Protection

♦ Dynamic Power Regulation

Specification

Parameters		Units	Standard	Extended band
Wavelength range	c-band	nm	1530~1565	1520~1575
Minimum Insertion Loss	@ 0 VDC	dB	≤1.0	≤1.1
Return Loss		dB	≥45	≥45
Wavelength Dependent Loss	@ 5 dB Att	dB	≤0.6	≤0.6
	@ 10 dB Att	dB	≤0.8	≤1.3
	@ 20 dB Att	dB	≤1.0	≤1.5
Polarization Dependent Loss	@ 5 dB Att	dB	0.2	0.3
	@ 10 dB Att	dB	0.3	0.4
	@ 20 dB Att	dB	0.5	0.6
Temperature Dependent Loss	@ 5 dB Att	dB	1.2	1.5
	@ 10 dB Att	dB	1.8	2.0
Polarization Mode Dispersion	@ 0-20 dB Att	ps	0.05	-
Voltage vs Insertion Loss correlative stability	@ 0-15 dB Att	dB	+/-0.7	-
Voltage vs Insertion Loss EOL variation	@ 0-15 dB Att	dB	+/-0.7	-
Connector	Per customer’s choice
