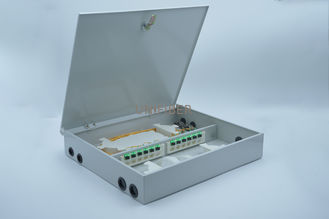

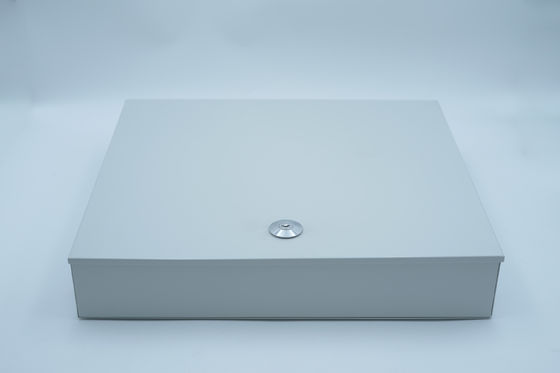

SC APC Fiber Termination Box Cold Rolled Steel 12 Ports 24c Wall Mount

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

SC APC Fiber Termination Box Cold Rolled Steel 12 Ports 24c Wall Mount

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  SC APC Fiber Termination Box Cold Rolled Steel 12 Ports 24c Wall Mount

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: GP(05)A-24
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: 12 Ports Wall Mount Fiber Termination Box Material: Cold Rolled Steel
Ports: 12 Connector: SC/APC
Installation: Wall Mounting OEM Brand: Acceptable
High Light:

SC APC Fiber Termination Box

,

Cold Rolled Steel Fiber Termination Box

,

24c Wall Mount Termination Box

Application:
GP(05)A-24 series Fiber Optic Terminal Boxes apply to the connection and termination of fibers and serve as protector for fiber fusion and storage.



Features:
* Splice & distribution in one unit
* Easy installation and operation of the components inside
* Adapters covered with plastic covers and easily removed and mounted
* Excellent seal performance for outdoor application
* Material: cold rolled steel.



Specification:

Parameters
Specifications
Dimension
455x405x80mm
Max capacity
24cores
Lateral pressure-resistance
500N
Relative Humidity (%)
≤85 (30°C)
Temperature range
-40℃~+60℃
Fiber length left in tray
≥1.6m
Shock resistance
750N



SC APC Fiber Termination Box Cold Rolled Steel 12 Ports 24c Wall Mount 0
