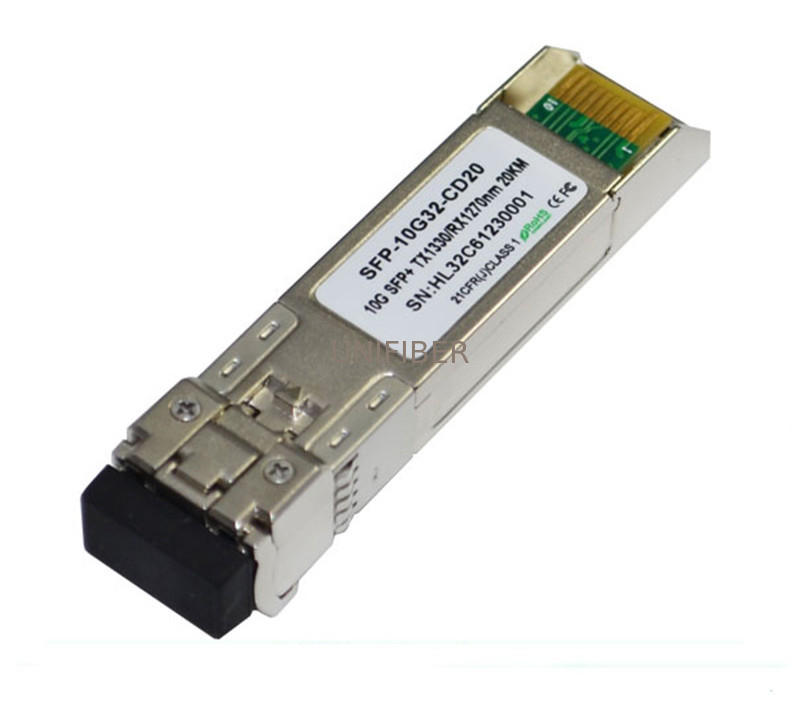

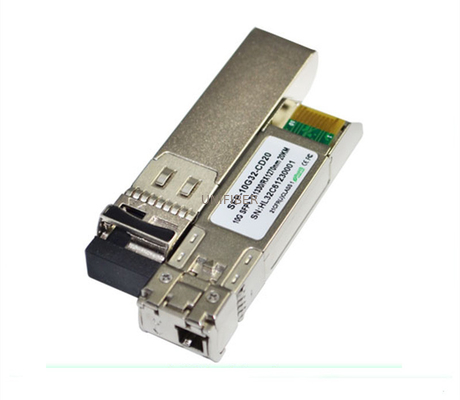

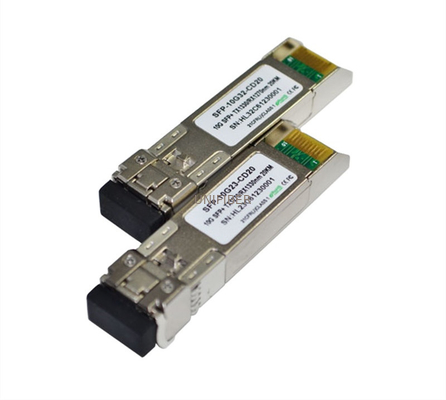

Simplex LC 10G Bidi SFP Transceiver Module 10km Tx1330nm Rx1270nm

Large Image : Simplex LC 10G Bidi SFP Transceiver Module 10km Tx1330nm Rx1270nm

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	Single Mode 10G Bidi SFP Transceiver Module 10km

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister case
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	Single Mode 10G Bidi SFP Transceiver Module 10km	Data Rate:	10G
Transmittion Distance:	10km 20km 40km 60km 80km	Wavelength:	Tx1330nm/Rx1270nm
Connector:	Simplex LC	Fiber:	Single Mode Fiber
High Light:	Simplex LC SFP Transceiver Module , Bidi SFP Transceiver Module , 10km Single Mode Transceiver Module

Features

1-Fiber Bi-Directional SFP Optical Transceiver

Up to 10.3 Gbps Bi-directional Data Links

Compliant with SFP+ MSA

Compliant to IEEE 802.3ae 10GBASE-BX

SFF-8472 Digital Diagnostic Function

Simplex LC Connector

DFB TX1270nm PIN RX1330nm DFB TX 1330nm PIN RX1270nm

Distance Up to 10km

AC/AC Coupling according to MSA

Single +3.3 V Power Supply

RoHS Compliant

Specifications

Part Number: SFP-10GBiDi-10

Device Type: SFP+ BiDi

Package: SFP+

Data Rate: 10.3Gbps

Wavelength: 1270nm/1330nm

Distance/Power Budget: 10km

Optical ComponentsLD: DFB

PD: PIN

Output Power: -5~0dBm

Receiver Sensitivity: -14dBm

Power Supply Voltage: 3.3V

Connector: Single LC

Fiber Type: SMF

Operating Temperature: 0~70 °C

DDMI: With

Application:

10G/ 10G FC

Compatiblity: All Brands

Applications

10GBASE-LR/LW at 10.3125Gbps

Other Optical Links

155M/622M BiDi SFP LC/SC	155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
4/2/1G BIDI SFP LC/SC	4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
10G SFP BiDi	SFP+ BiDi 1270 20km	SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 20km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
	SFP+ BiDi 1270 40km	SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 40km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
	SFP+ BiDi 1270 60km	SFP+ BiDi 60km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 60km	SFP+ BiDi 60km Tx1330/Rx1270nm LC
	SFP+ BiDi 1490 80km	SFP+ BiDi 80km Tx1490/Rx1550nm LC
	SFP+ BiDi 1550 80km	SFP+ BiDi 80km Tx1550/Rx1490nm LC
10G XFP BiDi	XFP BiDi 1270 20km	XFP BiDi 20km Tx1270nm/Rx1330nm LC
	XFP BiDi 1330 20km	XFP BiDi 20km Tx1330nm/Rx1270nm LC
	XFP BiDi 1270 40km	XFP BiDi 40km Tx1270nm/Rx1330nm LC
	XFP BiDi 1330 40km	XFP BiDi 40km Tx1330nm/Rx1270nm LC
	XFP BiDi 1270 60km	XFP BiDi 60km Tx1270nm/Rx1330nm LC
	XFP BiDi 1330 60km	XFP BiDi 60km Tx1330nm/Rx1270nm LC
	XFP BiDi 1490 80km	XFP BiDi 80km Tx1490/Rx1550nm LC
	XFP BiDi 1550 80km	XFP BiDi 80km Tx1550/Rx1490nm LC
