Product Details:
Payment & Shipping Terms:
|

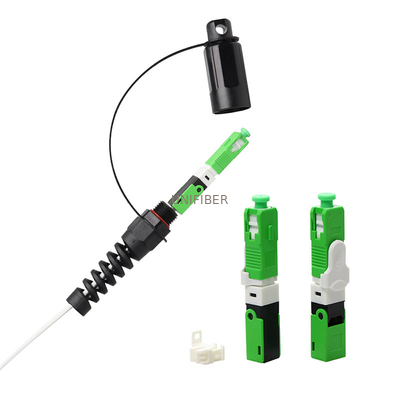

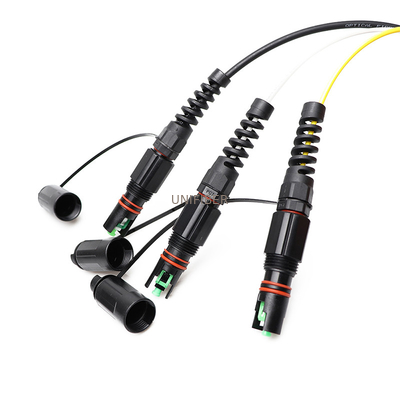

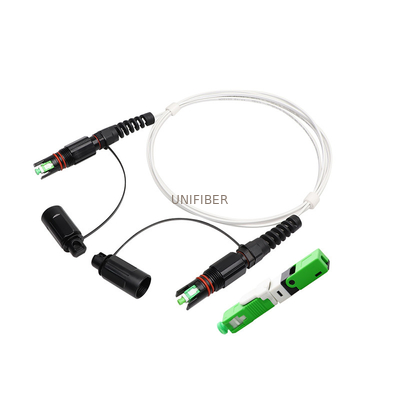

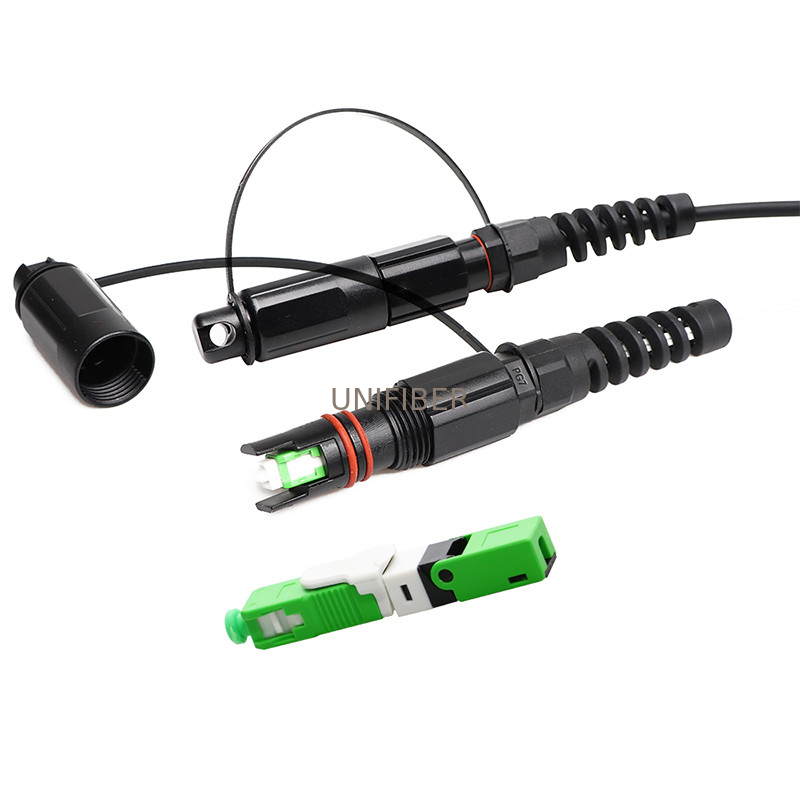

| Product: | FTTA IP68 Waterproof Reinforced Adapter Fiber Optic Fast Connector SC/APC | Cable Type: | Flat Drop Cable 3.0mm,5.0mm, Flat 2.0*3.0mm |
|---|---|---|---|
| Waterproof Grade: | IP68 | Connector: | Mini SC/APC |
| Application: | FTTH FTTA FTTP FTTX | ||
| High Light: | FTTA Fiber Optic Connector,IP68 Waterproof Fiber Optic Connector,SC APC Field Assembly Connector |
||
Applications
1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communication equipment connection.
3. Waterproof Fiber Equipment.
4. Remote wireless Base Station.
5. FTTx ISP Project.
Features
1. Available in multiple fiber lengths to meet all your FTTX design drop deployment.
2. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
3. Easy connection to hardended adapters on terminals or closures.
4. Provides superior weather resistance for FTTA and other outdoor applications.
5. Reduce welding,connect directly to achieve interconnection.
6. 100% tested assemblies built in a controlled environment.
7. Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
6. Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
7. Flexibility and reliability provides fast and simple deployments within a network.
8. Provides bend protection for installation and long term use.
9. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
Specification
| Applicable optical cable | 2.0x3.0mm,3.0mm ,5.0mm | ||
| Waterproof Rate | IP68.(1M ,1hour) | ||
| Insertion loss | ≤0.50dB | ||
| Return loss | ≥55dB | ||
| Mechanical durability | 1000 times | ||
| Torsion of optical cable | ≥15N | ||
| Drop performance | Allow 10 drops under 1.5m height without abnormal performance | ||
| Cable tension | 2.0x3.0mm (Ttap Fast Connector) | ≥30N; 2Minute | |
| 2.0mm,3.0mm (Ttap Connector) | ≥30N; 2Minute | ||
| 5.0mm (Ttap Connector) | ≥70N; 2Minute | ||
| Operation temperature | 2.0x3.0mm (Ttap Fast Connector) | -10℃~+70℃ | |
| 2.0mm,3.0mm (Ttap Connector) | -40℃~+80℃ | ||
| 5.0mm (Ttap Connector) | -40℃~+80℃ | ||
| Hot and humid working environment | Long term operation under 90% relative humidity ,70 ℃ | ||
