Product: | FTTH SC/APC Fiber Wall Outlet 1/2/4 Ports | No Of Ports: | 1/2/4 Ports |
---|---|---|---|
Connector: | SC/APC | Fiber: | G657A2 |
Drop Cable Length: | 20m 30m 40m 50m Or Customized | ||
High Light: | FO FTTH Terminal Box,SC APC FTTH Terminal Box,G657a2 Cable Fiber Termination Cabinet |

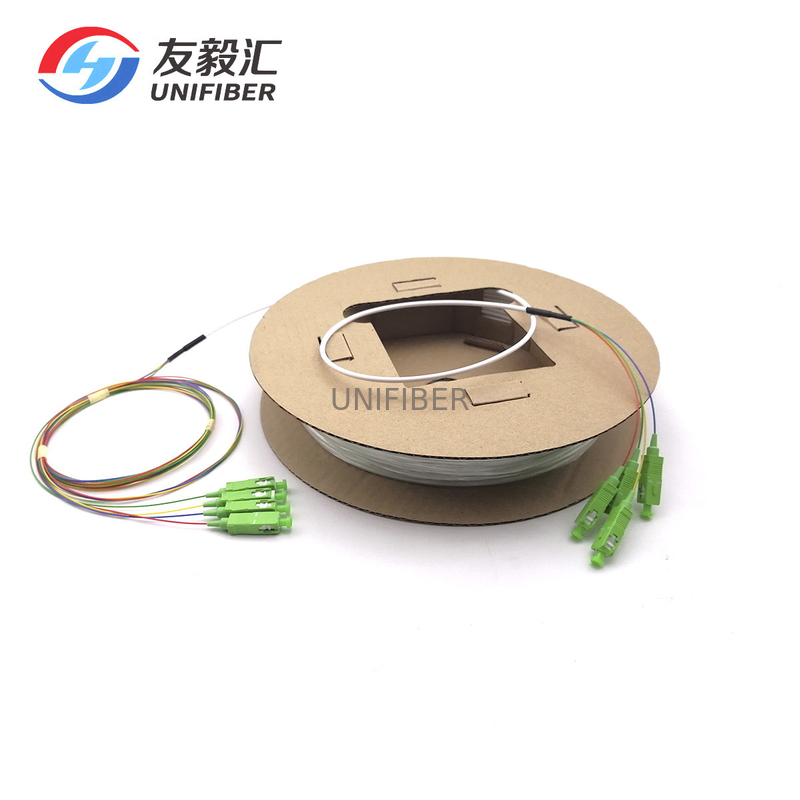

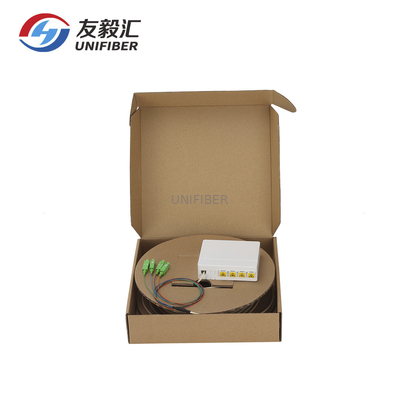

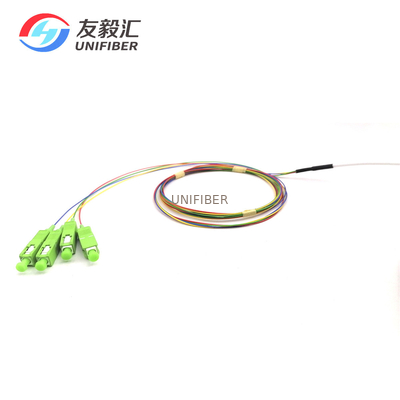

This Pre Connectorized FO terminal box esigned for FTTH applications. Composed with 1, 2 or 4 fibers directly connected to SC/APC inside of wall outlet. Provide quick and secure installation from the subscriber to the Multi Dwelling Unit. On one side of drop cable are connected in the box with SC/APC adapters with shutter for laser protection (no splice) and the other side is mini drop cable open with pulling eye. Mini Drop Cable OS2 G657A2.
Applications:
1. Fiber to the home(FTTH)
2. Fiber to the building(TFFB)
3. Local area networks
4. Wide area networks
Features:
1. Small size and light weight for easy installation compact body.
2. Water-proof design.
3. Easy installations:
Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Saving space: Double-layer design for easier installation and maintenances:
6. Lower layer for splicing .
7. Upper layer for cross-connecting and fiber distribution.
8. Fully stable adapter panel, no risk of movement.
9. Lock provided for extra security.
10. Fiber can get in from bottom or side
11. Anti-UV, Ultra viotet resistant and railfall resistant
Specifications
Cable Length | 10,15,20,30,40,50,60,70m...or Specify |
Size(mm) W*D*H | 100.5*80.5*29mm |
Color | White |
Cable Ports | 1/2/4 |
Max capacity of splice | 4(single fiber) for SC, 8port for LC |
Adapter type | SC/UPC, SC/APC,LC/UPC,LC/APC |
Material | PC+ABS |
