Product Details:
Payment & Shipping Terms:
|

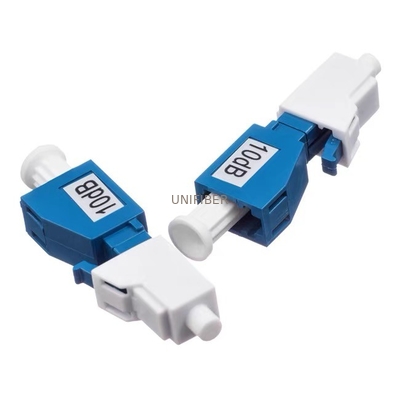

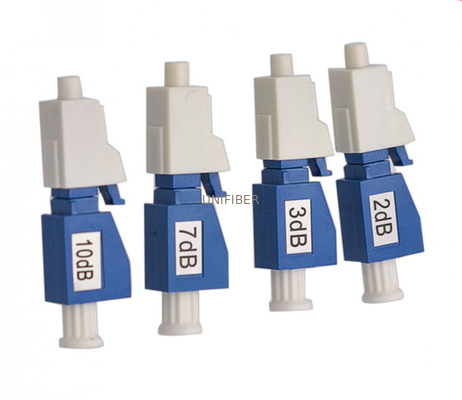

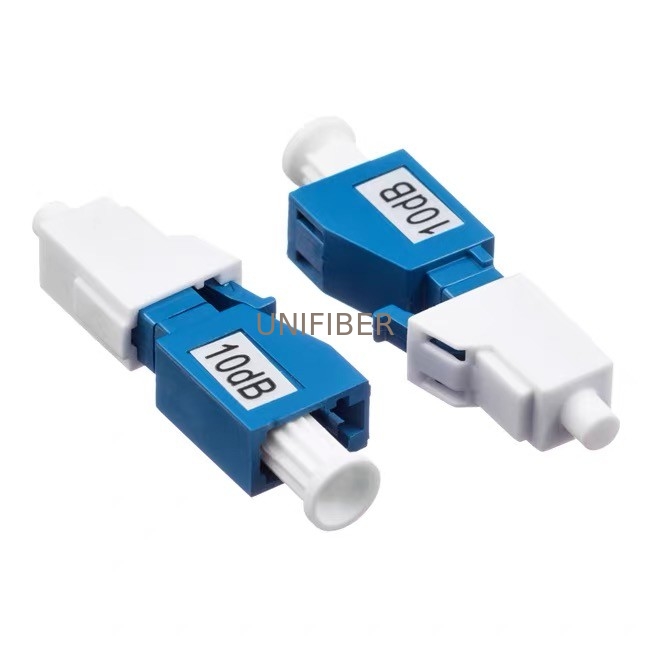

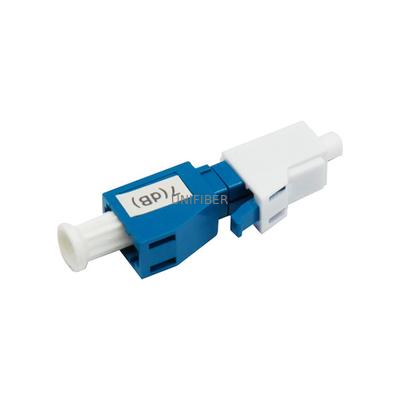

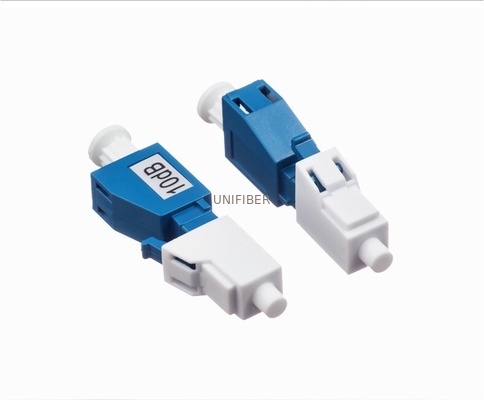

| Product: | LC/UPC Male Female Optical | Attenuation Value: | 1/3/5/7/10dB |
|---|---|---|---|
| Input Power (Max.) (mW): | 300 MW | Operating Wavelength: | 1310,1550 Nm |
| Ferrule Material: | Ceramic | OEM: | Support |
| Highlight: | 30dB Fiber optic attenuator,LC UPC Fiber optic attenuator,Fiber Optic Attenuator Single Mode |
||
Fiber optic attenuators are devices which reduce (attenuate) the strength of a fiber optic signal within a fiber optic network. Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements. This may occur because of a mismatch between the transmitters/receivers (transceivers, media converters), or because the media converters are designed for a much longer distance than for which they are being used. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin.
Features
Low insertion loss and back reflection
Definable attenuation from 1dB to 30dB
PC, UPC and APC polish types
Available with FC, SC, ST and LC terminations
Applications
Telecommunication Networks
Local Area Network
FTTH and FTTx
Fiber Optic Sensors
Test & measurement
DWDM applications
Specification
| Optical Performance | M-F Plug Type | F-F Adaptor Type |
| Testing Wavelength(nm) | SM: 1310nm/1550nm | 1310nm |
| MM: 850nm/1300nm | ||
| Attenuation Accuracy(dB) | 1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value | |
| Return Loss(dB) | ≥50dB (PC) | ≥50dB (PC) |
| ≥60dB (APC) | ≥60dB (APC) | |
| Input Power (Max.) (mW) | 300 | |
| Durability(dB) | <0.2dB Typical, 1000 Matings | |
| Operating Temperature(°C) | -40~+80 | |
| Storage Temperature(°C) | -40~+85 | |
