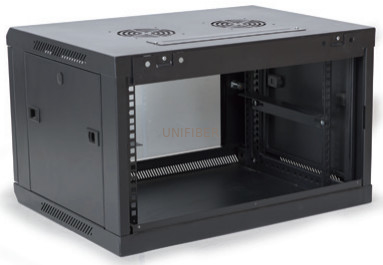

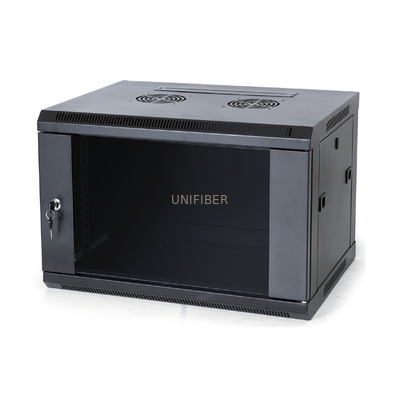

6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel

6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel
6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel

Large Image :  6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: Wall Mount Network Server Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Contact Now
Detailed Product Description
Product: Wall Mount Network Server Cabinet Material: Cold-rolled Steel
Width: 600mm Depth: 450mm
Load Capacity: 60kg Color: Black
OEM Design: Support
High Light:

6U Network Cabinet Wall Mount

,

18U Network Cabinet Wall Mount

,

Steel Wall Mount Server Rack Cabinet

6U 9U 12U 15U 18U Wall Mount Network Server Cabinet

Wall Mount Rack Network Cabinet is really suitable for server rooms, audio rooms, wiring closets, manufacturing areas, warehouses, or anywhere where heavy networking equipment needs to be protected and maintained usually.



Product Advantages

-Exquisite design with precise dimensions and craftsmanship .
- Easy installation.
- Optional locks for side panels.
- Closable top/bottom cable entry openings.
- Removable side panels and front/back doors for operation and watching.
- Casters or support feet can be installed when it’s on ground.
- Doors can be opened from the left or right.
- Top cover is available to fans.
-Main material:Cold-rolled steel.
- Surface treatment:Degreasing, pickling, phosphating, laundering, powder Coating.Doors can be opened from the left or right.
- Load capacity:Static load:60KG.
Types
UNF04401-1
UNF04401-2
UNF04401-3
UNF04401-4
Capacity(U)
6U
9U
12U
15U
Width
600
600
600
600
Depth
450
450
450
450
Height
370
500
636
770
Whole Package
Width
620
620
620
620
Depth
470
470
470
470
Height
390
530
660
790
Volumes(CBM)
0.114
0.154
0.192
0.230



6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 0

1
top cover
2
bottom plate
3
frame
4
front door
5
side panel
6
horizontal bracket
7
L-shaped bar
8
back panel
9
mounting panel
10
profile rail
6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 1
6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 2
6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 3
6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 4
6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 5
6U 9U 12U 15U 18U Network Cabinet Wall Mount Server Rack Cabinet Cold Rolled Steel 6
No.
Names
Quantity
Surface Treatment
1
frames
2PC
powder coating
2
front doors
1PC
powder coating
3
side panels
2PC
powder coating
4
L-shaped panels
2PC
powder coating
5
back panels
1PC
powder coating
6
wall hanging panels
1PC
powder coating
7
profile rails
4PC
powder coating
8
cage nuts
20PC
powder coating
9
wall hanging panels
1PC
powder coating
10
profile rails
4PC
powder coating
11
cage nuts
20PC
powder coating
