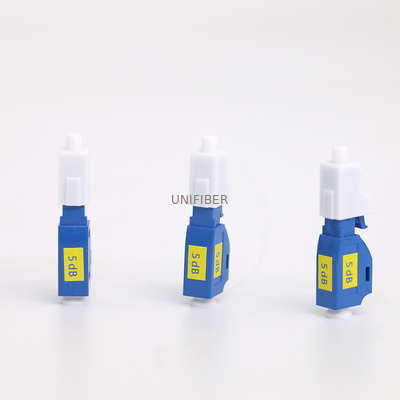

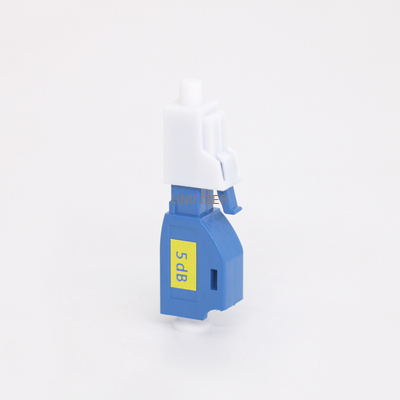

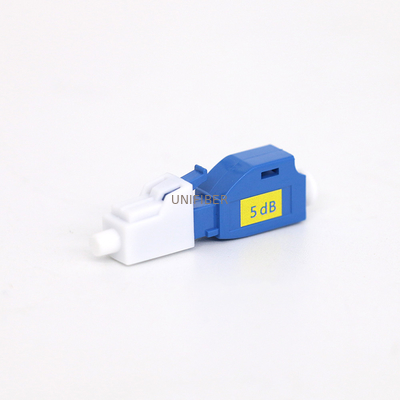

Product: | LC UPC Male Female Fixed Fiber Optic Attenuator | Connector: | LC UPC Male To LC/UPC Female |
---|---|---|---|
Attenuation Values: | 1db 3db 5db Or Others | House Color: | Blue |
Wavelength: | 1310/1550nm | Application: | FTTx |
High Light: | FTTx Fiber Optic Attenuator,Fiber Optic Attenuator 1db,LC UPC Fixed Optical Attenuator |
Fiber optic Attenuators are used in applications where a pre-determined amount of light loss is specified.
We offer LC, FC, SC, ST, MU fixed attenuator with different attenuation level, from 1dB to 30dB.
Key Features
· Bellcore Compliant
· Wavelength Independent
· Durability & Simple and Reliable Structure
Specifications
· Operating Wavelength: SM: 1310nm, 1550nm
· MM: 850nm, 1300nm
· Return loss: More than 55dB (UPC)
· Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30)
· Polarization Dependent Loss: Less than 0.2dB
· Max. Optical Input Power: 200mW
· Operating Temp Range: -40~80°C
Applications
· l Telecommunication Networks
· l Local Area Network
· l FTTH and FTTx
· l Fiber Optic Sensors
· l Test & measurement
· l DWDM applications
