Product Details:
Payment & Shipping Terms:
|
| Product: | Pre-terminated Multifiber Cable Assembly | Fiber Counts: | 12/24/36/48/72/144 Core |
|---|---|---|---|
| Connector: | LC/UPC SC/APC Or Customized | Length: | 10/20/30/40/50/80m Or Customized |
| Fiber Type: | SM OM1 OM2 OM3 Om4 | Break Out Pigtail: | 0.9mm Or 2.0mm |
| High Light: | 0.9mm pre terminated multi fiber cable,LSZh pre terminated multi fiber cable,Customized Pre Terminated Multi Fiber Cable |
||

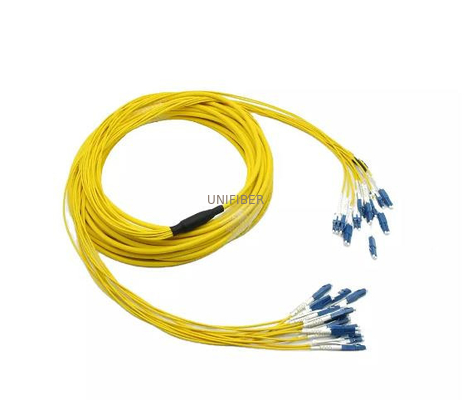

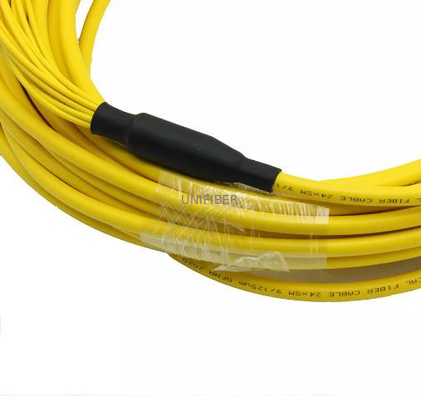

Pre-terminated Multifiber breakout cable is another kind of cable designed for indoor vertical and horizontal connection. This type of cable is widely used between buildings wi thin ducts below the frost line,the high-quality pre-terminated cables for indoor and/or outdoor applications, with fanout number ranging from 12 to 144. Available connector types include MPO, SC, LC, FC, LSH, and MU, available fanout kits include steel-tube type, round type, box type, barrel type, etc., and available fanout types include bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc. The fanout length can be up to 10 meters, and the fanout tolerance can be as small as 0.5cm.
APPLICATIONS
Connected with trunk cables on one end, equipment port on the other end.
Connected with transfer modules on one end, equipment port on the other end.
FEATURES
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
100% pre-terminated and tested in factory to ensure transfer performance
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Rapid configuration and networking, reduce installation time
Specification

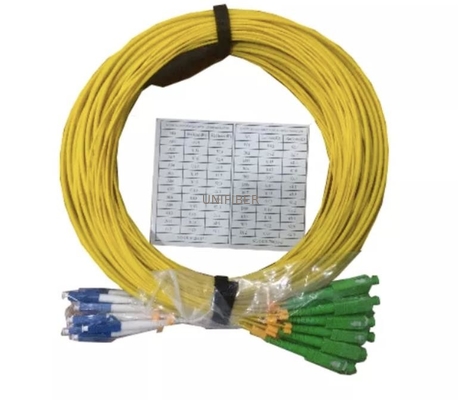

| Product | 12/24/48 Fibers SM G657A1 LC/UPC to SC/APC Trunk patch cord /Breakout Patch cable |
| Pre-Terminated Connector | LC/UPC to SC/APC |
| Polished | UPC or APC |
| Fiber Count | 4 8 12 24 48 Fibers |
| Fiber Mode | SM OM1 OM2 OM3 Om4 |
| Jacket Color | Yellow Aqua orange |
| Breakout OD | 0.9mm or 2.0mm |
| Insertion Loss | < 0.3 DB |
| Return Loss | >50db |
| Jacket Materials | PVC LSZh |
| Product Keywords | 0.9mm pvc jacket 9/125 Single mode Riser and Plenum Fiber Trunk Cables |
