Product Details:
Payment & Shipping Terms:
|
| Product: | Huawei Mini SC Reinforced Optical Connector | Connector: | Huawei Mini SC |
|---|---|---|---|
| Cable: | Flat Drop Cable 2.*3.0mm,3.0mm ,5.0mm | Fiber: | G657A1 |
| Waterproof: | IP68 | Options: | Factory Assembly Or Field Assembly |
| Application: | FTTx | ||
| High Light: | ftth field fiber optic connectors,reinforced fiber optic connectors |
||

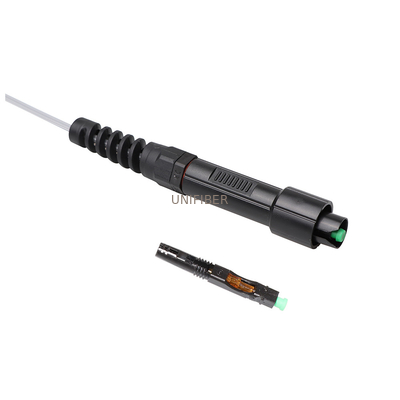

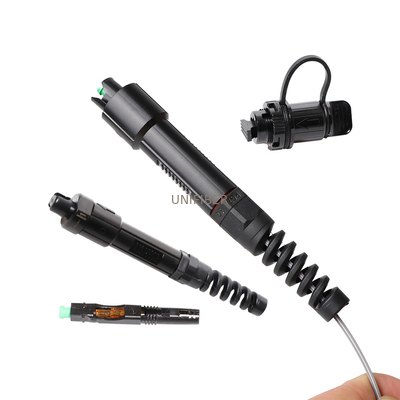

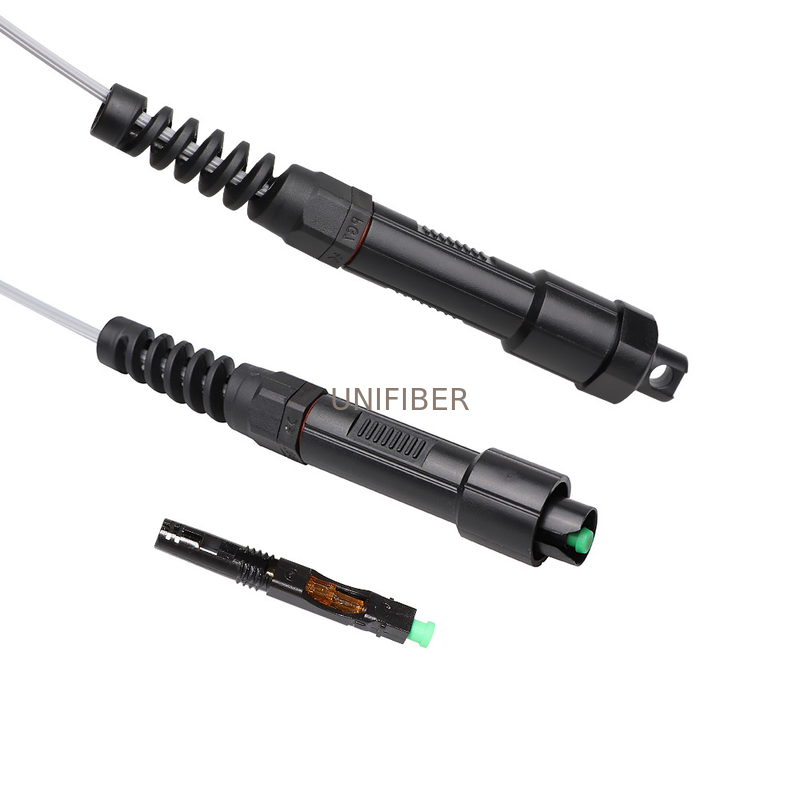

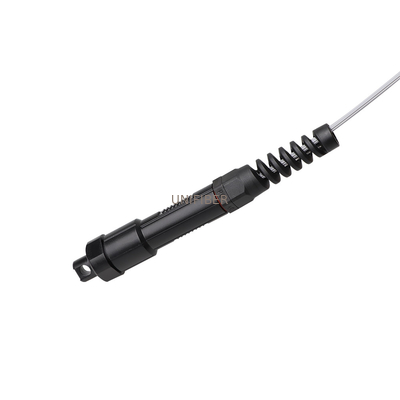

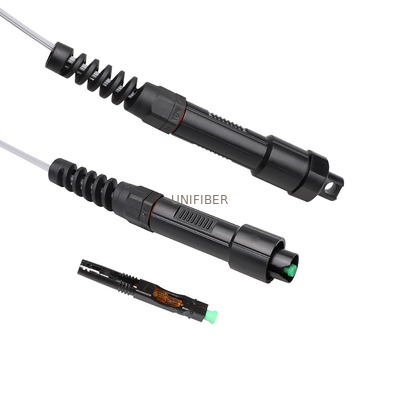

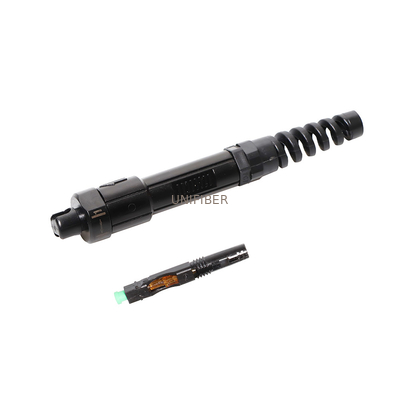

Huawe mini SC or Corning Optitap H optical connector provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. it incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, it provides an ideal solution for direct burial, conduit, or aerial installations.
Features
1. Compact size,easy to operate,durable.
2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. IP68 water and dust protection.(1M,1 hour)
5. Spiral clamping mechanism ensures long-term reliable connection.
6. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
7. Low operating temperature: - 10 ℃ ~ + 70 ℃
8. Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
9. Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
Applications
1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projiect.
|
Item
|
Parameter
|
|
Cable Scope
|
Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
|
|
Size
|
51*9*7.55mm
|
|
Coating Diameter
|
250μm
|
|
Mode
|
SM
|
|
Operation Time
|
about 15s(exclude fiber presetting)
|
|
Insertion Loss
|
≤ 0.3dB(1310nm & 1550nm)
|
|
Return Loss
|
≤ -50dB for UPC, ≤ 55dB for APC
|
|
Success Rate
|
>98%
|
|
Reusable Times
|
>5 times
|
|
Tighten Strength of Naked Fiber
|
>5 N
|
|
Tensile Strength
|
>30 N
|
|
Temperature
|
-40 ~ +85 C
|
|
Drop Test
|
IL ≤ 0.3dB
|
