Product Details:
Payment & Shipping Terms:
|
Product: | Optitap MST Multiport Service Terminal Box | No Of Ports: | 4 |
---|---|---|---|
Connector: | Optitap | Waterproof Grade: | IP68 |
Splitter: | 1x4 | Installation: | Wall Mount, Pole Mount And Aerial Mount |
Application: | FTTX ISP Networks | ||
Highlight: | optitap mst box,4 ports mst box |

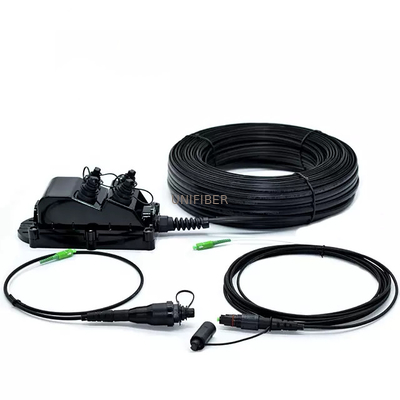

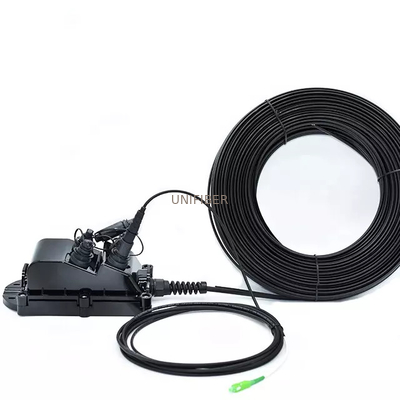

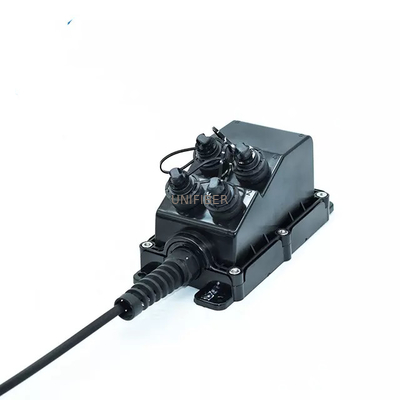

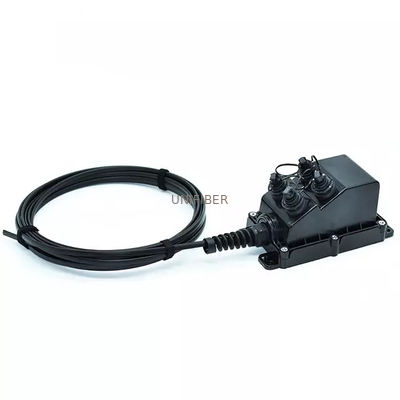

4 ports corning optitap mst multiport service terminal box dielectric flat drop 100ft tail
4 ports Corning Optitap MST Multiport Service Terminal Box is a factory terminated OSP fiber terminal designed for quick and easy subscriber connections, it with Hardened Optitap Drop Cable come with rugged Indoor/Outdoor Fiber Assemblies, Multiport Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments Plug and play adapter ports ensure rapid cable installment in the outside plant access section of the network
Features:
No splicing required in the terminal
No terminal re-entry required
Available with hardened full-size optical or miniaturized DLX connectors with up to 12 ports
1:2, 1:4, or 1:8 splitter options
Dielectric, toneable, or armored input stub cables
Pole, pedestal, handhole, or strand mounting options
Ships with universal mounting bracket
User-friendly packaging allows foreasy un-spooling
Factory-sealed enclosure for environmental protection
Application:
Quick and easy subscriber connections
Factory sealed for deployment in up to 10 feet of water head
Re-enterable for connector repair
Pole and swing arm mountable
Low profile design
Flat drop, ADSS, pushable/air-jettable MicroDrop, or armored drop cable stubs
OSP Networks
FTTx Networks
Items | Specifications |
Dimensions LxWxH | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
Ingress protection | IP67 |
Temperature range | -40 to + 80°C |
Cable strength member | Armoured or Non-armoured |
Cable type | Hybrid or non-hybrid |
Round cable OD | 5.0mm to 14mm |
Flat cable dimension | 4.6x8.9mm |
Cable jacket material | LSZH, PEorTPU |
Bending Radius | 20D |
Cable crush resistance | 200N/cm long term |
Fire protection rating | UL94-V0 |
Number of PLC | 1 to 2pcs |
Number of fusion protection sleeve | 1 to 24pcs |
