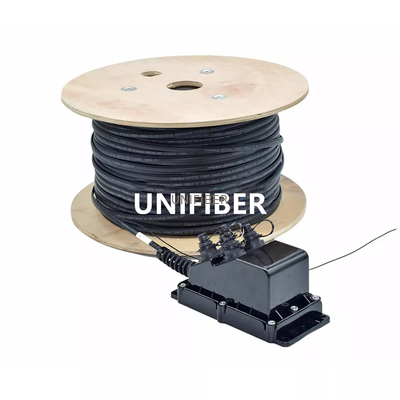

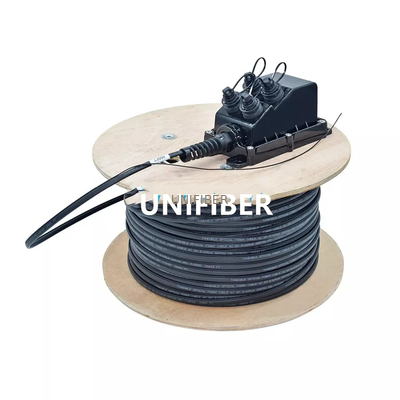

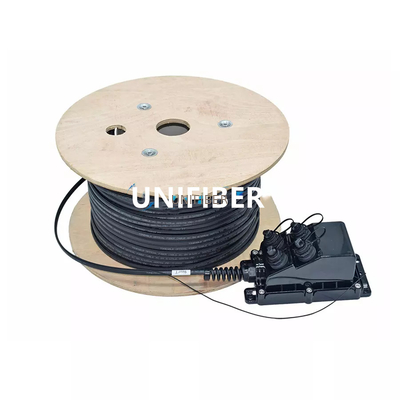

Terminal Box Pre Connectorized Drop Cable 100m Pole Mounted 4 Ports H Optitap FTTX Optical

All Products

Fiber Optical Patch Cord (286)

MPO MTP Patch Cord (86)

Fiber Cable Assembly (170)

Fiber Optic Splitter (120)

Wavelength Division Multiplexer (127)

Fiber Optic Transceiver (102)

Fiber Optic Patch Panel (173)

Fiber Optic Termination Box (215)

Pre Terminated Multi Fiber Cables (56)

Fiber Optic Pigtail (76)

Fiber Optic Connectors (80)

Fiber Optic Adapter (95)

Fiber Optic Attenuator (44)

Bulk Fiber Optic Cable (103)

Fiber Optic Splice Closure (95)

Fiber Optic Cabinet (26)

Fiber Optical Switch (31)

Fiber Optical Circulator (14)

Fiber Optical Isolator (27)

I'm Online Chat Now

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	4 Ports H Optitap MST Terminal Box

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Product:	4 Ports H Optitap MST Terminal Box	Ports:	4/6/8/12 Optional
Waterproof Grade:	IP68	Connector:	Optitap H Connector
Cable:	Flat Drop Cable	Fiber:	G657A1
Jacket:	LSZH, PE Or TPU	Application:	FTTx
High Light:	Pre Connectorized drop cable Terminal Box , 100m Fiber Optic Termination Box , FTTX Optical Fiber Termination Box

MST FTTX Fiber enclosure waterproof box 4/6/8/12/24 port Optitap MPO SC fiber Optic FTTH terminal box IP68 with adapter input

imensions(LxWxH)	210x105x93mm(4Core) 283x105x95mm(8Core)
Ingress Protection	IP68
Working Temperature	-40~85℃
Cable Strength Member	Armoured or Non-armoured
Cable Type	Hybrid or non-hybrid
Round Cable OD	5.0mm to 14.0mm
Flat Cable Dimension	4.5*9.8mm
Cable Jacket Material	LSZH,PE or TPU
Bending Radius	20D
Cable Crush Resistance	200N/cm long term
Tensile Strength	1200N long term
UV Resistance	ISO 4892-3
Fire Protection Rating	UL94-V0
Number of PLC	1~2pcs
Number of Fusion Protection Sleeves	1~24pcs

Configuration
	Standard	Optional
Input Hole	PG13.5	MINI SC, H Connectors(OptiTap), OptiTap-MPO, ODVA or Customized
Output Hole	MINI SC,H connector	MINI SC, H Connectors(OptiTap), OptiTap-MPO, ODVA or Customized
Extend Hole	Closed	MINI SC, H Connectors(OptiTap), OptiTap-MPO, ODVA or Customized
