Product Details:
Payment & Shipping Terms:
|
| Product: | Huawei Mini SC MST Nap Box | Ports: | 8 |
|---|---|---|---|
| Connector: | Mini SC | Waterproof Grade: | IP68 |
| Splitter: | 1x8 | Application: | FTTH |
| High Light: | FTTH Mini SC MST Nap Box,IP68 Mini SC MST Nap Box,1x8 Fiber Termination Box |
||
Description of FTTH Pre-connectorized 8 ports MST Nap Box Huawei Mini SC IP68
The Multi Service Terminal Box Pre-connectorized with OptiTap or huawei mini SC hardened adapters, They are 2 ports, 4 ports, 6 ports, 8 ports or 12 ports for options. It suitable for fast FTTH deployment, the terminal box are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments.
Factory terminated IP68 rated, high quality, high performance connectors.
Specification
| Port | 2, 4, 6, 8, 12 Ports |
| Product Type | FTTH Pre-connectorized MST Nap Box |
| IP Rate | IP68 |
| Components Compliant | RoHs |
| Operating Temperature | -40 to +85℃ |
| Adapter | Huawei mini SC, OptiTap SC, OptiTap LC Duplex, OptiTap MPO |
| Entrance | Cable gland or Mini SC/OptiTap adapter |
| Feed Cable | 1, 2, 4, 6, 8 cores for options |
| Feed Cable Length | 100M 150M 200M or Others |
| Stub Type | Stub Tail |
| Mounting Method | Hand-hole, Pedestal, Pole, Strand, Aerial |
Cable Specification
| Cable Type | Flat drop cable |
| Cable Size | 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm |
| Cable Quantity | 1 |
| Cable Stub Length | 50meter to customized |
| Attenuation, maximum | 0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm |
| Directivity, minimum | 60 dB |
| Wavelength Range | 1260–1635 nm |
|
Insertion Loss, Terminal Connector, max |
0.4dB |
| Return Loss, Connector, minimum | 65dB |
Dimension of MST Nap Box
| Item | Dimension |
| 2Port | 210x111x78mm |
| 4Port | 210x111x78mm |
| 6Port | 210x111x78mm or 282x111x77.5mm |
| 8Port | 282x111x77.5mm |

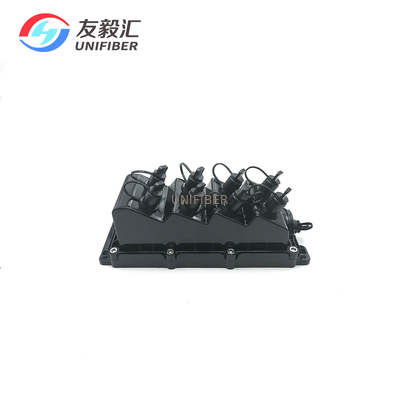

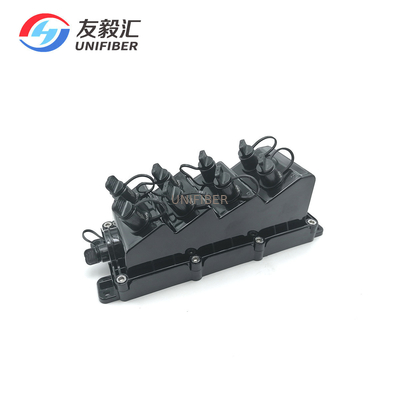

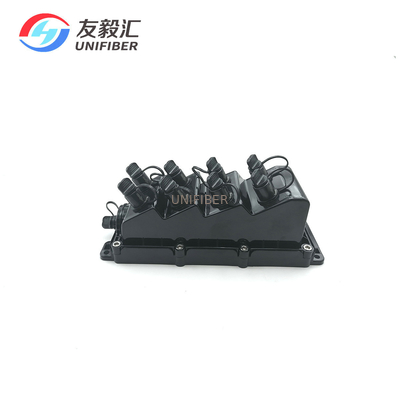

Picture of FTTH Pre-connectorized 4/6/8 ports MST Nap Box
