Outdoor ADSS Single Mode Fiber Optic Cable bulk 100m Span Double Sheath

Outdoor ADSS Single Mode Fiber Optic Cable bulk 100m Span Double Sheath
Outdoor ADSS Single Mode Fiber Optic Cable bulk 100m Span Double Sheath Outdoor ADSS Single Mode Fiber Optic Cable bulk 100m Span Double Sheath Outdoor ADSS Single Mode Fiber Optic Cable bulk 100m Span Double Sheath

Large Image :  Outdoor ADSS Single Mode Fiber Optic Cable bulk 100m Span Double Sheath

Product Details:
Place of Origin: CHINA
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: adss fiber optic cable
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Wooden roll
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 1000
Detailed Product Description
Product: ADSS Fiber Optic Cable Fiber Type: G652D
Fiber Counts: 12 24 48 96 Core Span: 80m 100m 120m
Cable Sheath: PE Application: Outdoor Aerial
High Light:

ADSS Single Mode Fiber Optic Cable

,

G652D Bulk Outdoor Fiber Optic Cable

,

100m Bulk Single Mode Fiber

Outdoor ADSS Single Mode Fiber Optic Cable Bulk 100m Span Double Sheath



Description of Outdoor aerial 12 24 48 96 core ADSS single mode fiber optic cable 100m span double sheath

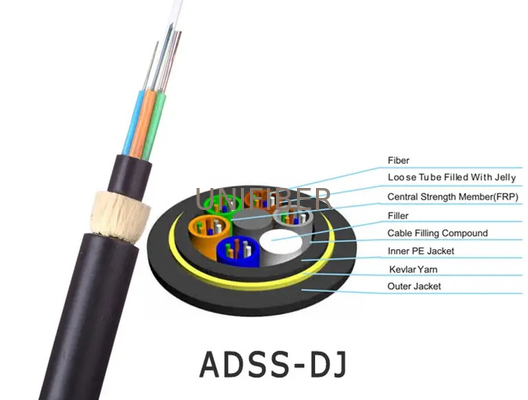

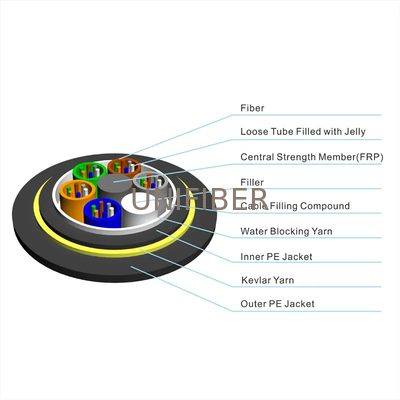

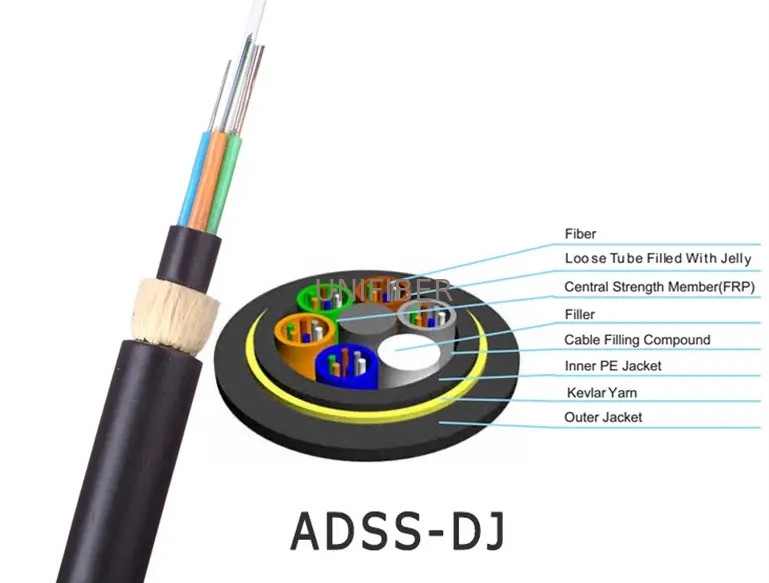

ADSS cable is loose tube stranded.The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as a non-metallic strength member into a compact and circular cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is completed with a polyethylene (PE) or AT outer sheath.ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.



Features

Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Crush resistance and flexibility.
Two parallel steel wires ensure tensile strength.
Small diameter, light weight and friendly installation.



Specification

Outdoor Aerial ADSS Optical Fiber Cable
Fiber Count

12
Design
Strength Member +Tube & Filler
1+5
Fiber type

G652D
Central Strength Member
Material
FRP
Diameter
1.5(±0.05mm)
Loose Tube
Material
PBT

Diameter
2.1(±0.05mm)

Thickness
0.35 (±0.03mm)

MAX.NO./per
6
Filling Rope
Material
PE

Diameter
1.8(±0.05mm)

NO.
4
Water Blocking Layer
Material
Flooding Compound
Additional Strength Member
Material
Aramid Yarn

Outer Sheath
Material
HDPE
Thickness
1.8(normal)
Color
Black
Cable Diameter

9.6(±0.2mm)
Cable Weight

78 (±10.0kg/km)
Cable breaking strength(RTS)
5.8 KN
Working Tension (MAT)
2.2 KN

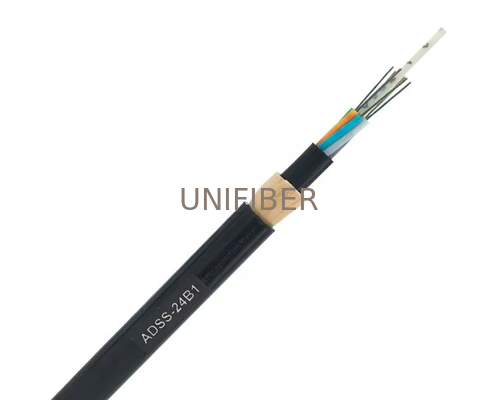

Picture of Outdoor overhead power single mode adss fiber optic cables

Outdoor ADSS Single Mode Fiber Optic Cable bulk 100m Span Double Sheath 0
