Description of Outdoor IP68 Dome Fiber Optic Splice Closure

GPJ09-5817 series dome closures feature the high-capacity design. The fusion splice capacity range is 144F~648F, with 24F/ 12F/ 6F tray capacity. The splice trays for the joint closures are interchangeable with splitter trays. Both fusion splice and splitter installation are feasible. Employing the heat shrink seal, the protection grade of this series can reach IP68. The heat-shrink sealing base is interchangeable with the mechanical sealing base (from GPJ09-5822).

Features

Cable mouth base can be switched, from the original 17 cable mouth (4 branch ports forφ14-22mm; 12 branch ports forφ8-16mm;1 uncut ports range is 10-25mm) switch to 10 cable mouth (7 branch ports forφ8-17.5mm;2 soft cable ports availible for differente specification of soft cable ;2 cable inlet and outlet can be used for different specifications of cable;1 uncut cable port range is 10-22mm).
GPJ09-5817-A dome joint box has a maximum capacity of 144 cores, GPJ09-5817-B dome joint box has a maximum capacity of 360 cores,
and GPJ09-5817-B dome joint box has a maximum capacity of 720 cores.
GPJ09-5817-A dome joint box can be equipped with 12 *12F or 24* 6F trays, GPJ09-5817-B dome joint box can be equipped with 30* 12F or 60 *6F trays, GPJ09-5817-C dome joint box can be equipped with 60 *12F trays.
The outer box body is made of modified polymer plastic, and the sealing ring is made of vulcanized silicone rubber, which has high strength and corrosion resistance, and can extend the service life of the product. Fiber tray can be replaced with optical fiber divider, each optical fiber divider can be installed with 2 *1:4 and 1* 1:8 micro splitters.
A variety of fiber trays can be selected to meet the requirements of splicing and installation of splitter.

Specifiation

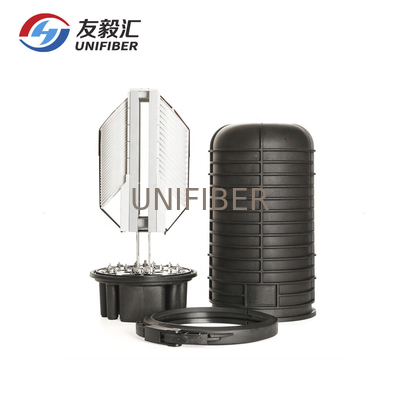

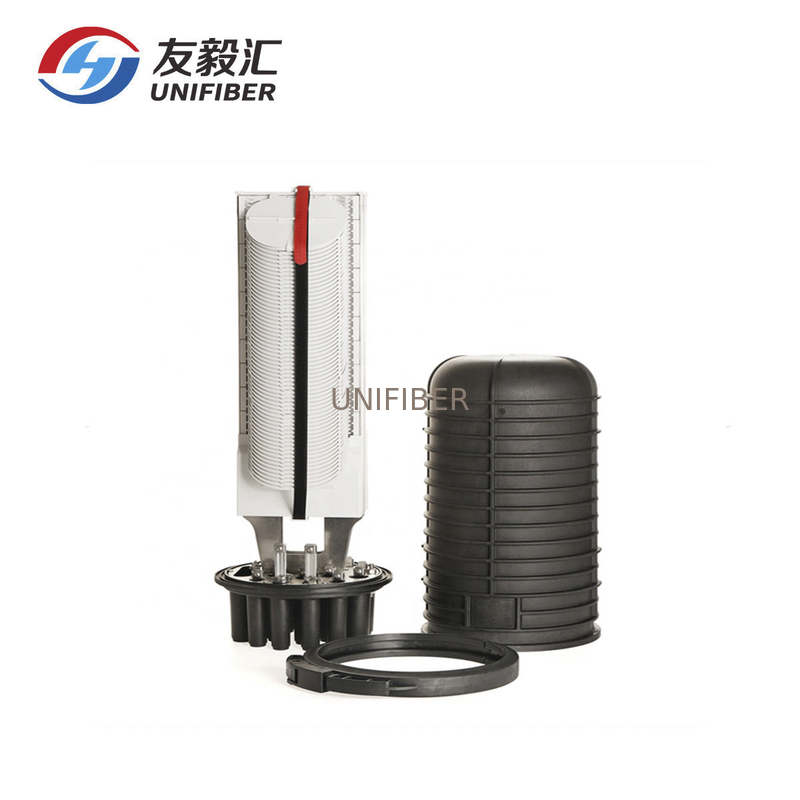

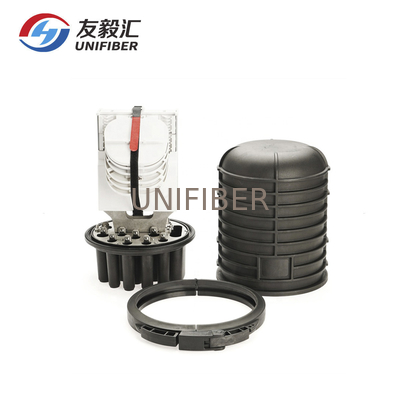

Picture of 144 Core 360 Core 648 Core Dome Fiber Splice Closure
