Product Details:
Payment & Shipping Terms:
|
| Installation: | Wall-mounted Or Pole Mounted | Drop Cable: | 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm |
|---|---|---|---|
| Color: | Black | Feed Cable: | 1, 2, 4, 6, 8 Cores For Options |
| Application: | FTTH, FTTX | Protection Level: | IP68 |
| PLC Splitter: | 1x4 Or 1x8 Mini PLC Splitter | Feed Cable Length: | 100M 150M 200M Or Others |
| High Light: | Multi Port Fiber Optic Termination Box,FTTH Fiber Optic Termination Box,FTTX Fiber Access Terminal Box |
||

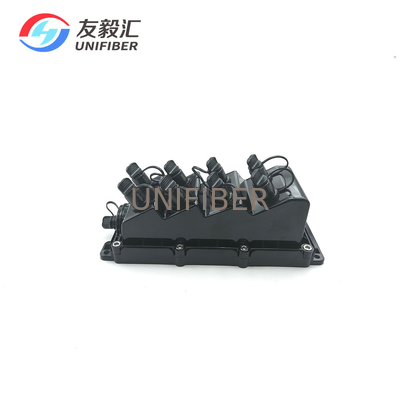

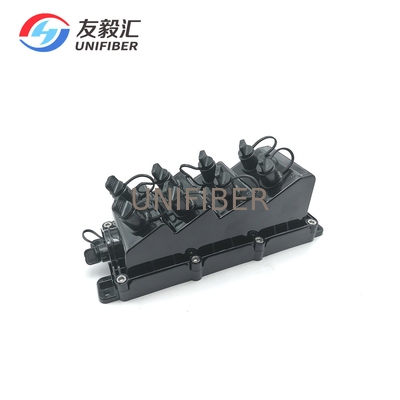

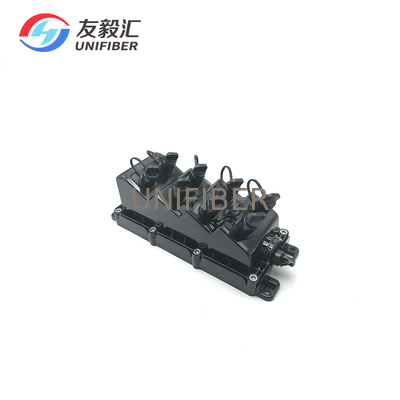

This Fiber Enclosure is a cost-effective fiber distribution solution for outdoor use. Compared to traditional products, it is more user-friendly and exhibits higher compatibility. Depending on the circumstances, it can be used for either wall-mounting, aerial installation or holding pole installation. Unifiber provides it with options ranging from 4-ports to 12-ports, based on demand. It is usually fitted with Corning Optitap or Huawei mini SC connector in their entirety.
Factory-sealed or field assembly connectors are strong enough to work efficiently under 1200N of pulling force for long periods of time. It is available from 2 to 12 ports for either single or multi-fiber harsh connectors, and you can choose between PLC and splice sleeve for fiber divide. With an IP68 waterproof rating, these connectors can be used for wall-mounting, aerial installation or holding pole installations. Additionally, they offer cost-effectiveness as using them can help you save up to 40% operating time.
| Parameters | Description |
|---|---|
| Application | FTTH, FTTX |
| Material | ABS |
| Fiber Type | Single-mode, Multi-mode |
| No of Ports | 4/8/12 Ports |
| Main Feature | Mini Size |
| Connector Type | Huawei Mini SC or Corning Optitap |
| Feed Cable | 1, 2, 4, 6, 8 Cores for Options |
| Color | Black |
| Protection Level | IP68 |
| Feed Cable Length | 100M 150M 200M or Others |
The GPON solution is an outdoor fiber communication technology delivering a wide variety of services, such as internet, telephony, IPTV, etc. It is the most cost-effective solution for next-generation networks. It is used to provide broadband access and also enable the deployment of a future-proof network architecture.
In order to successfully deploy the GPON solution, a comprehensive FTTx project is needed. This includes but is not limited to the installation and maintenance of the GPON equipment, designing the architecture of the network, ensuring the performance of the whole system, and providing related training and support.
Outdoor fiber communication requires an environment that is user-friendly and safe. Therefore, installing and maintaining the GPON solution need to ensure the security and reliability of its networks. This can be done by having a secure network design, using trusted system components, and providing comprehensive technical support.
Brand Name: Unifiber or OEM
Model Number: MST terminal box
Place of Origin: China
Installation: Wall-mounted or Pole Mounted
Connector Type: Huawei Mini SC or Corning Optitap
Fiber Type: Single-mode, Multi-mode
Material: ABS
Drop Cable: 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm
Our Unifiber/OEM MST outdoor fiber optic termination box is designed for outdoor use, and is made of high-quality ABS material. It is designed to provide a secure connection between the main cable and the drop cable, and is available in both wall-mounted and pole mounted options. It is compatible with Huawei Mini SC or Corning Optitap connectors, and is available in both single-mode and multi-mode fiber types. It is also available with drop cable sizes of 3.0x4.5mm, 4x7mm, 4.5x8.1mm, and 4.5x9.8mm.
We provide comprehensive technical support and service for Fiber Optic Termination Box products, including:
For more information, please contact us.
