Product Details:
Payment & Shipping Terms:
|
No Of Ports: | 4/8/12 Ports | Connector Type: | Huawei Mini SC Or Corning Optitap |
---|---|---|---|
Main Feature: | Mini Size | Fiber Type: | Single-mode, Multi-mode |
Cable Type: | Round Or Flat Drop Cable | Protection Level: | IP68 |
Application: | FTTH, FTTX | PLC Splitter: | 1x4 Or 1x8 Mini PLC Splitter |
High Light: | FTTH Fiber Access Terminal Box,Fiber Access Terminal Box IP68,Mini SC Fiber Optic Termination Box |
For any environment, the fiber optic connectors are available either factory-sealed or for field assembly. With incredible strength and endurance, they are capable of working under 1200N pulling force for prolonged use. An extensive range is available with varying ports of single and multi-fiber harsh connectors ranging from 2 to 12. Furthermore, it is available with PLC or splice sleeve for fiber division.
Achieving the IP68 waterproof rating, this product can be installed in various ways, including wall-mounting, aerial installation or holding pole installation. To top it all off, it is cost effective and helps save up to 40% more operating time than traditional products.
Parameter | Details |
---|---|
No of Ports | 4/8/12 Ports |
Main Feature | Mini Size |
Feed Cable Length | 100M 150M 200M Or Others |
Entrance type | Cable Gland Or Mini SC/OptiTap Adapter |
Protection Level | IP68 |
Application | FTTH, FTTX |
Feed Cable | 1, 2, 4, 6, 8 Cores For Options |
Fiber Type | Single-mode, Multi-mode |
Installation | Wall-mounted Or Pole Mounted |
PLC Splitter | 1x4 Or 1x8 Mini PLC Splitter |
FTTx (Fiber to the x/home)is a communication system that provides an optical fiber connection from a central office to a residential or business user. One component of this system is GPON (Gigabit-class Passive Optical Network). As an FTTx solution, GPON can provide high-speed access service for home users and business users.
Once the GPON is deployed, it offers an outdoor fiber communication system to link the central office to multiple residential or business users from a single connection point. This means the users can enjoy high speed and quality services with no need for long cable connection.
Our company is an experienced solution deployer for FTTx projects. With our professional services, our customers can benefit from the expedient and flexible advantages of the GPON solution, and the capacity can reach up to 2.488G/s downstream and 1.2488G/s upstream.

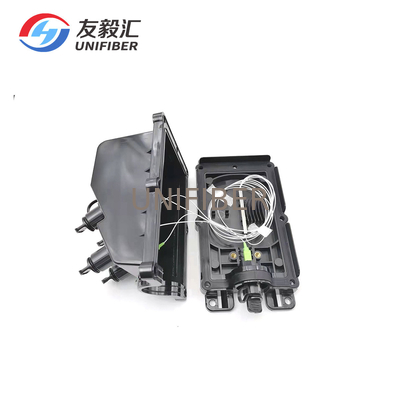

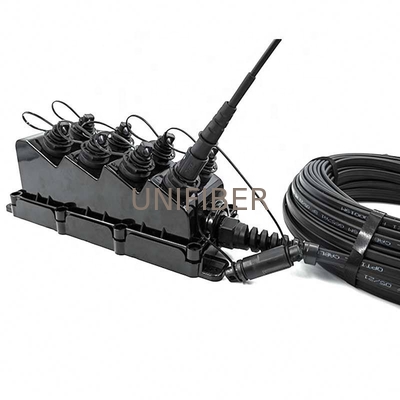

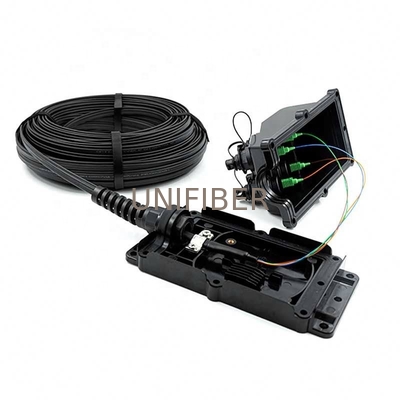

Fiber Optic Termination Box
Unifiber offers a range of Fiber Optic Termination Boxes, including fiber optic multiport service terminal, Connectorised Block Terminals, and outdoor fiber optical terminal box. Our MST terminal box supports IP68 protection level, 1x4 Or 1x8 Mini PLC Splitter, Wall-mounted Or Pole Mounted installation, and Cable Gland Or Mini SC/OptiTap Adapter entrance type, and Huawei Mini SC Or Corning Optitap connector type.
We provide technical support and service for our Fiber Optic Termination Box products. Our team of technicians and engineers are available 24/7 to answer any questions and resolve any issues you may have.
We offer a variety of services, including installation, troubleshooting, maintenance and repair, and training. We also have a wide range of resources available, such as manuals, videos, and FAQs.
Our team is dedicated to providing the highest level of customer service and satisfaction. If you have any questions or concerns, please do not hesitate to contact us.
