Product Details:
Payment & Shipping Terms:
|
| Material: | ABS+PC | No Of Ports: | 4/6/8/12 |
|---|---|---|---|
| Connector: | Corning Optitap Or Huawei Mini SC | Splitter: | 1x4 Or 1x8 Mini PLC Splitter |
| Waterproof Grade: | IP68 | Application: | FTTX ISP Networks |

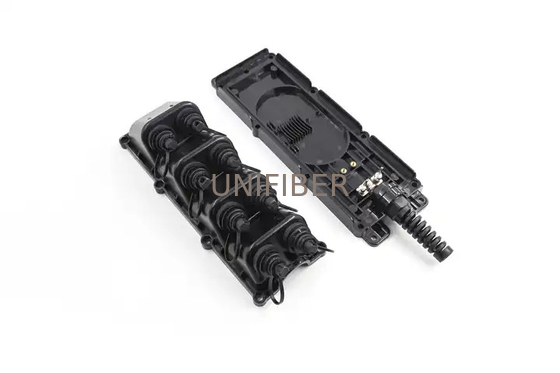

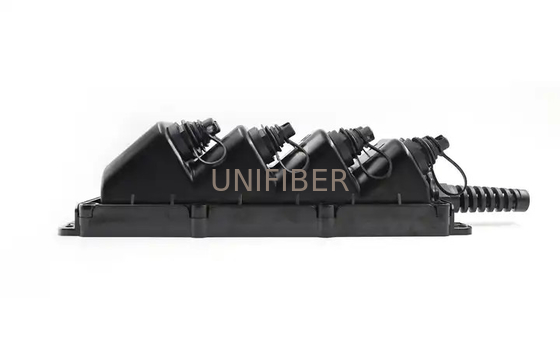

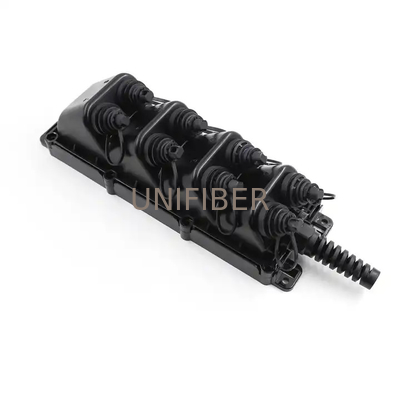

This IP68 Optitap Pre-Connectorized MST Fiber Terminal Box is quick and easy deployment on the site, it can have corning optitap or huawei mini SC Hardened waterproof connectors. customer also can ask to have any specified length come with the terminal box based on the actual application.
Features:
1:4, or 1:8 mini plc splitter
Quick and easy deployment
No splicing required in the terminal
Dielectric, toneable, or armored input stub cables
Pole, pedestal, handhole, or strand mounting options
IP68 waterproof grade
Application
OSP Networks
FTTx Networks
Specification
| Items | IP68 Optitap Pre-Connectorized MST Fiber Terminal Box |
| Dimensions LxWxH | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
| Waterproof protection | IP68 |
| Connector type | Optitap or mini SC |
| No of ports | 2,4,6,8,12 Ports |
| Round cable OD | 5.0mm to 14mm |
| Flat cable dimension | 4.6x8.9mm |
| Cable jacket material | LSZH, PEorTPU |
| Output cable length | Any specified length |
