Product Details:
Payment & Shipping Terms:
|
| Product: | Mems Optical Variable Attenuator(VOA) | Wavelength: | 1310nm |
|---|---|---|---|
| Attenuation Type: | Dark | Power Handling: | 500mW |
| Attenuation Range: | ≥30dB | Connector: | LC/UPC |
| Application: | Channel On/off Switching |
1310nm 1550nm MEMS VOA Single Mode Variable Optical Attenuator Dark Type 5V LC/UPC
MEMS VOA (Micro Electro-Mechanical Systems Variable Optical Attenuator) is a micro-optic component designed for next generation, dynamically configurable optical networks. It is based on the Photonic Integrated Circuit (PIC) and electrostatic MEMS technology. The reflective mirror MEMS technology enables the creation of products with high attenuation levels and can be configured as bright or dark devices. When combined with the advanced packaging and manufacturing capabilities, this results in a new category of MEMS components that are designed to exceed specifications for performance, compactness, manufacturability and reliability. Operating wavelength, attenuation type, drive voltage, fiber type, fiber length and connectors can be customized.
Features
High Reliability and Stability
Insensitive to Shock and Vibration
Low Power Consumption
Low Insertion Loss & Low PDL
Low WDL &Compact Design
Application
Channel on/off switching
Gain-tilt control in EDFAS
Receiver protection
Power control and equalization in multi channel System
Specification

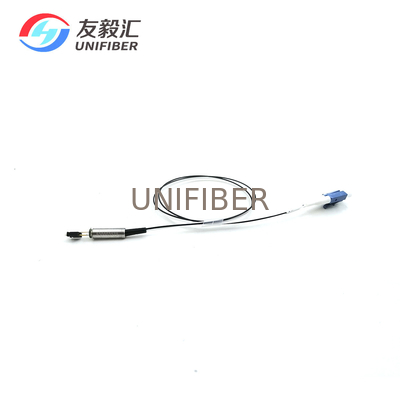

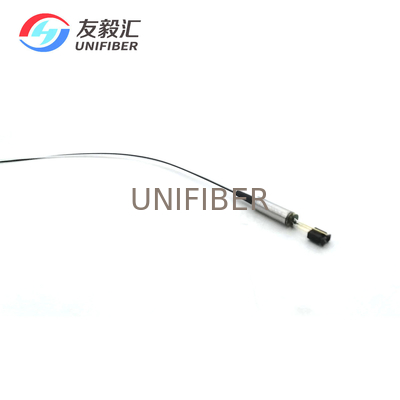

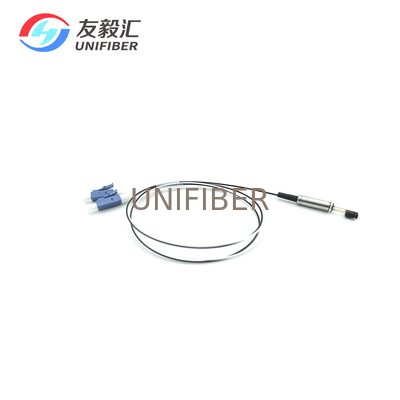

Picture of 1310nm 1550nm Single Mode Variable Optical Attenuator
