1310nm 1550nm Single Mode MEMS Variable Optical Attenuator(MVOA) Dark Type 5V LC/UPC

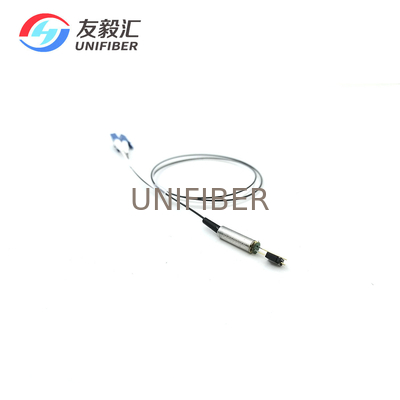

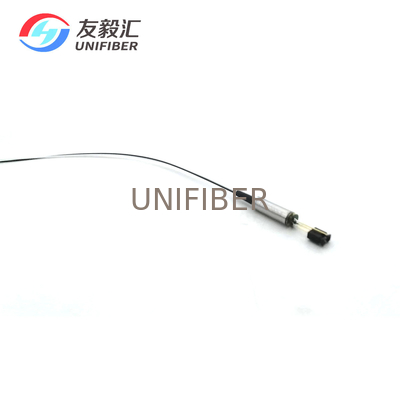

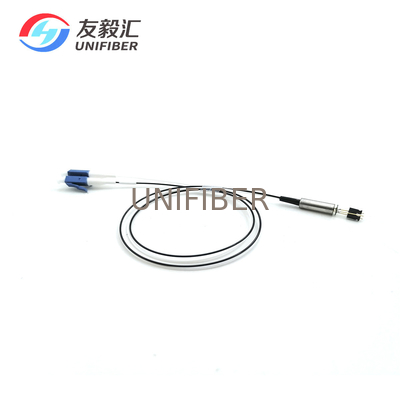

Large Image : 1310nm 1550nm Single Mode MEMS Variable Optical Attenuator(MVOA) Dark Type 5V LC/UPC

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	MEMS Variable Optical Attenuator(MVOA)

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Product:	MVOA	Wavelength:	1310nm 1550nm
Power Handling:	500 MW	Attenuation Range:	≥30dB
Connector:	LC/UPC	Attenuation Type:	Dark

MEMS VOA (Micro Electro-Mechanical Systems Variable Optical Attenuator) is a micro-optic component designed for next generation,dynamically configurable optical networks. It is based on the Photonic Integrated Circuit (PIC) and electrostatic MEMS technology.The reflective mirror MEMS technology enables the creation of products with high attenuation levels and can be configured as bright or dark devices. When combined with the advanced packaging and manufacturing capabilities, this results in a new category of MEMS components that are designed to exceed specifications for performance, compactness, manufacturability and reliability.Operating wavelength, attenuation type, drive voltage, fiber type, fiber length and connectors can be customized.

Features

Low Insertion Loss(IL)
Low Polarization Dependent Loss (PDL)
Compact design
Wide attenuation range: >30dB
Operating wavelength range: C-band or L-band
Low powerconsumption < 2mW
Insensitive to shock and vibration

Application

Power control and equalization in multi channel System
Gain-tilt control in EDFAS
Receiver protection
Channel on/off switching

Specification

Parameter	Specification	Unit	Note
Wavelength Range	1064	nm
	1310	nm	O Band
	1530~1570	nm	C band
	1570~1610	nm	L band
Attenuation Type	Bright or Dark	-
Attenuation Range	≥30	dB	For Single Mode
Blocking state Attenuation)	≥40	dB	Dark Type
Insertion Loss	≤0.7	dB	For Single Mode
Attenuation Resolution	Continuous	-
Wavelength Dependent Loss	≤0.3	dB	@<0 dB Att.
Wavelength Dependent Loss	≤1.5 Typical 0.8	dB	@<20 dB Att.
Polarization Dependent Loss	0.1	dB	@<0 dB Att.
Polarization Dependent Loss	0.5	dB	@<20 dB Att.
Temperature Dependent Loss	≤0.7	dB	@<0 dB Att. compare with RT
Temperature Dependent Loss	≤1.0	dB	@<20 dB Att. compare with RT
Return loss	≥45	dB	For Single Mode
Respnse Time	≤2	ms	10-90%optical power
Optical Power Handing	500	mW
Driving Voltage	6.5 or 15	V
Power Consumption	≤2	mW
Operation Temperature	0~70	℃
Storage Temperature	-40~85	℃
