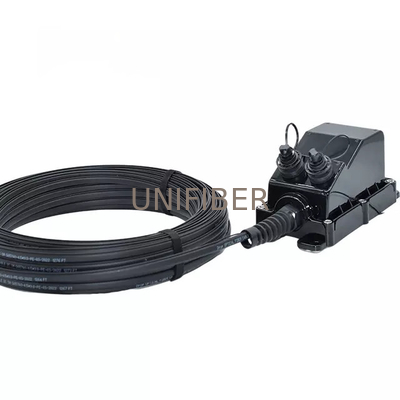

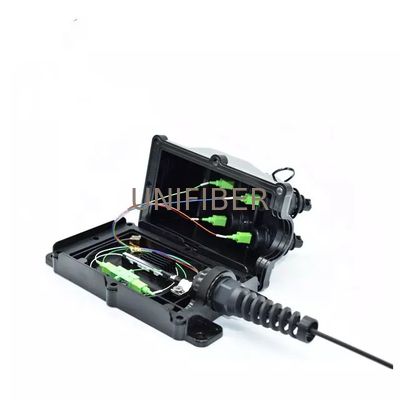

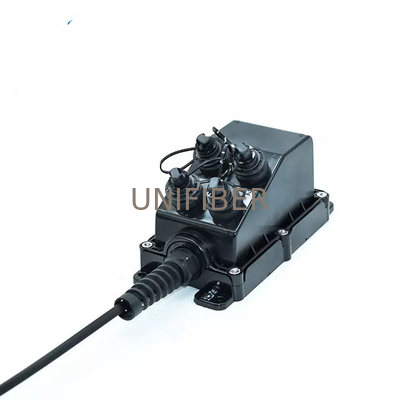

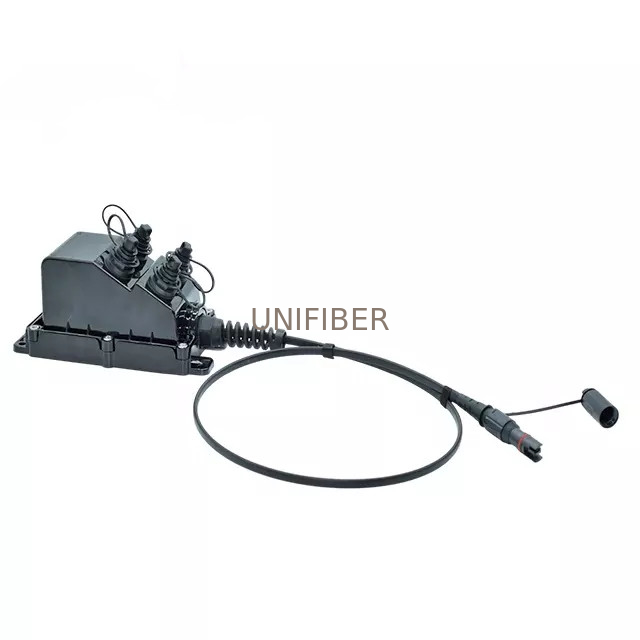

4 Ports Terminal MST Optitap with 4F flat fiber drop cable 250FT

Large Image : 4 Ports Terminal MST Optitap with 4F flat fiber drop cable 250FT

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ROHS
Model Number:	4 Ports Optitap Terminal MST

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Products:	Optitap MST Terminal Box	Entrance:	Cable Gland Or OptiTap Adapter
Adapter:	OptiTap SC, OptiTap LC Duplex, OptiTap MPO	IP Rate:	IP68
No Of Ports:	2 4 6 8 12	Color:	Black
Application:	FTTx

The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.

Features

Each box can be fully assembled to reduce the need for opening and opening the field in the field.

Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.

Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.

Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.

Factory terminated IP68 rated, high quality, high performance connectors.

Flexible choice of ports: 2, 4, 6, 8 terminals are available.

Kind of mounting bracket allowing for a wide range of mount options.

Specification

Port	4, 6, 8, 12
Product Type	Access Terminal
IP Rate	IP68
Components Compliant	RoHs
Operating Temperature	-40 to +85℃
Adapter	OptiTap SC, OptiTap LC Duplex, OptiTap MPO
Entrance	Cable gland or OptiTap adapter
Feed Cable	1, 2, 4, 6, 8, 12 cores for options
Feed Cable Length	Customized
Stub Type	Stub Tail
Mounting Method	Hand-hole, Pedestal, Pole, Strand, Aerial

Cable Type	Flat drop cable
Cable Size	4.5x8.0mm; 4.5x12.0mm
Cable Quantity	1
Cable Stub Length	50 meter to customized
Attenuation, maximu	0.30 dB/km @ 1550 nm \| 0.40 dB/km @1310nm
Directivity, minimum	60 dB
Wavelength Range	1260–1635 nm
IL,Terminal Connector, max	0.4dB
Return Loss, Connector, minimum	65dB

Item	Dimension
4Port	210.8x111.4x87.8mm
6Port	267.5x112.0x89.0mm
8Port	337.4x112.0x92.5mm
12Port	364.7x138.9x110.2mm
