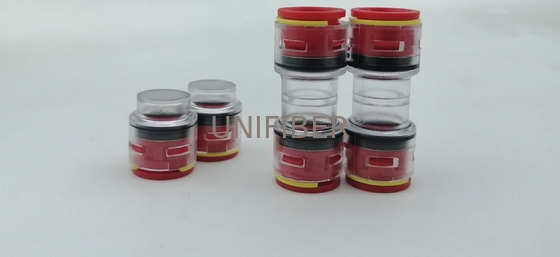

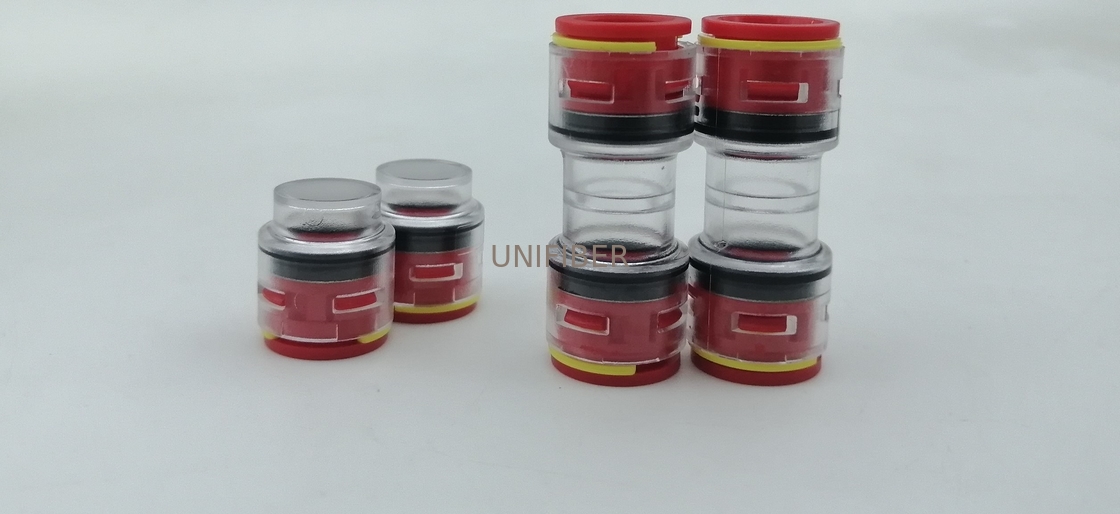

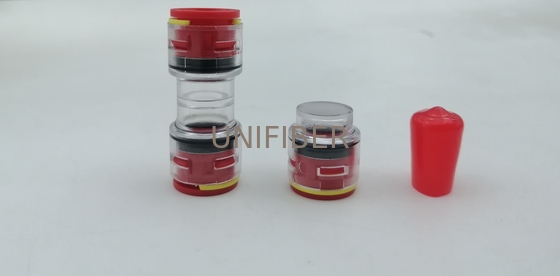

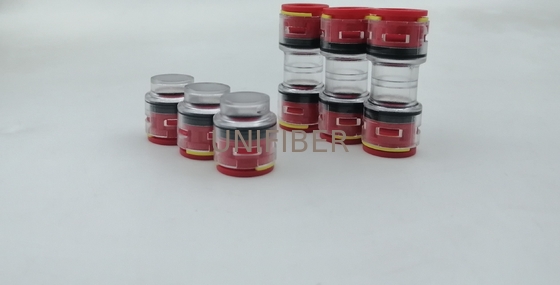

FTTH Air Blowing HDPE Micro Duct Straight Connector 7/10/12mm

FTTH Air Blowing HDPE Micro Duct Straight Connector 7/10/12mm
FTTH Air Blowing HDPE Micro Duct Straight Connector 7/10/12mm FTTH Air Blowing HDPE Micro Duct Straight Connector 7/10/12mm FTTH Air Blowing HDPE Micro Duct Straight Connector 7/10/12mm

Large Image :  FTTH Air Blowing HDPE Micro Duct Straight Connector 7/10/12mm

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: ROHS
Model Number: HDPE Micro Duct Straight Connector
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/day
Detailed Product Description
Product: HDPE Micro Duct Straight Connector Pipe Material: HDPE、PE、Nylon、Polyurethane
Color: Red/Dark Green Function: Connecting Microduct Pipes
Outer Diameter Of Pipe: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20 Pull Test: 400N
IP Protection: IP68

HDPE Micro Duct Straight Connector is made of PC material, which can prevent corrosion when installed underground. Transparent shell, you can clearly see the connection effect. Matching and install the lock clip to prevent falling off due to high pressure gas during the blowing process. Ergonomic design, easy installation and disassembly operation.IP68 waterproof rating, the maximum pressure is up to 28bar. Solve the trouble of air leakage during the air blowing process.



Features

Permanant solid silicon lubricant layer in the inner wall.
Longitudinal ribbed inner wall of microduct to further reduce the friction coefficient of duct so as to be beneficial to cable blowing.
Maximal accommodation is 288C micro cable.
Can be placed into the existing pipe system to fulfill the pipe hole expansion.
Reduce the construction cost, and shorten the construction period.



Specification

Description
For Tube OD(mm)
3mm Straight Connector
3-3
4mm Straight Connector
4-4
5mm Straight Connector
5-5
6m Straight Connector
6-6
7mm Straight Connector
7-7
8mm Straight Connector
8-8
10mm Straight Connector
10-10
12mm Straight Connector
12-12
14mm Straight Connector
14-14
16mm Straight Connector
16-16



FTTH Air Blowing HDPE Micro Duct Straight Connector 7/10/12mm 0
