Product Details:
Payment & Shipping Terms:
|
| Item: | Pre Terminated Multi Fiber Cables | Fiber Type: | Multi-mode Or Single-mode |
|---|---|---|---|
| Optical Fiber Type: | SM G657A1 | Break Out Pigtail: | 0.9mm Or 2.0mm |
| Jacket Color: | Yellow | Fiber Brand: | Corning Or YOFC Fiber |
| Connector: | SC/UPC To SC/APC | Ferrule Material: | 1.25mm Ceramic Ferrule |
| Cable Length: | Customized | Mode Type: | Single Mode |
| Storage Temperature: | -40°C To +85°C | Cable Jacket: | OFNR |
| Product: | Pre Terminated Fiber Optic Cable |

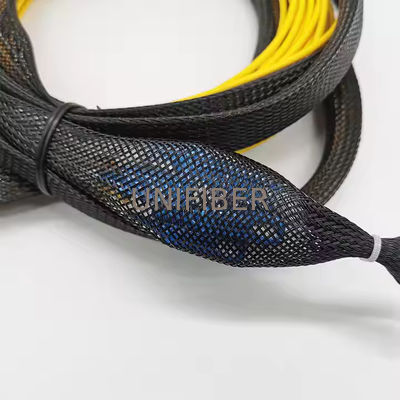

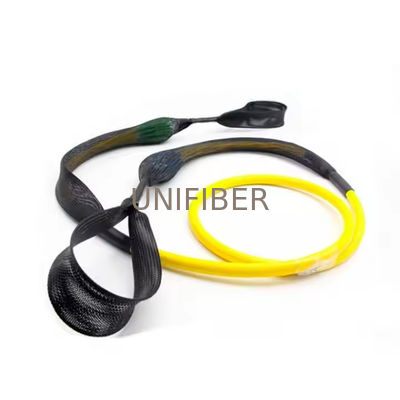

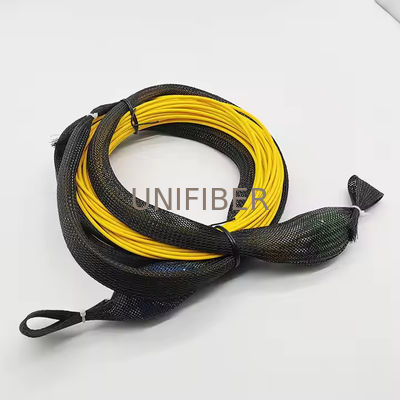

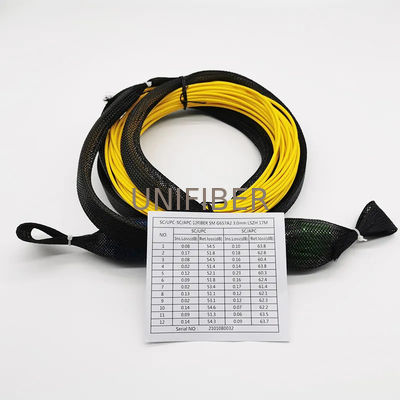

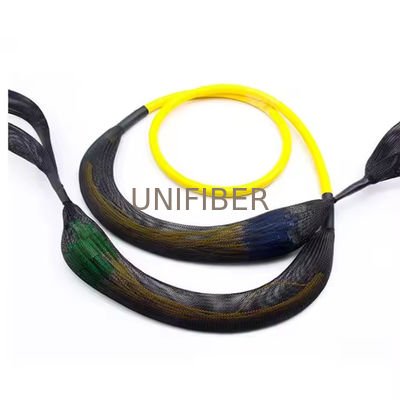

Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks.
Features
The G.657.A1 fiber allows tighter cable bends for routing.
Cable is easy for management and saves cabling space.
No splicing or connector assembly, reducing lots of time.
Application
The slim and robust indoor multi-fiber patch cable is not only cabling in high-density data centers but also terminated into rack mount and wall mount enclosures.
Specification
