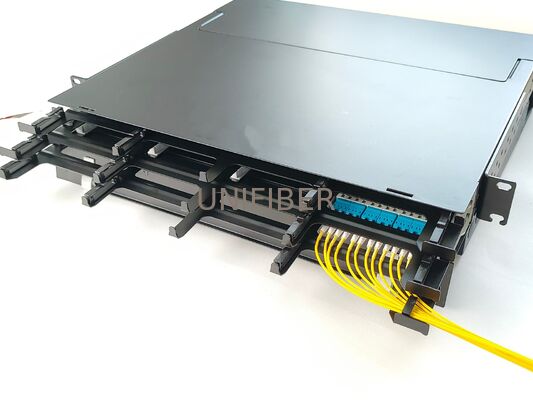

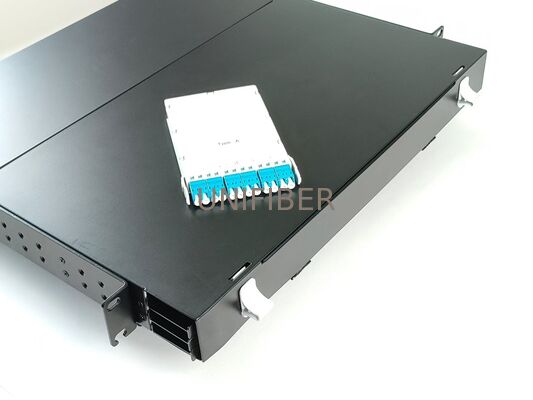

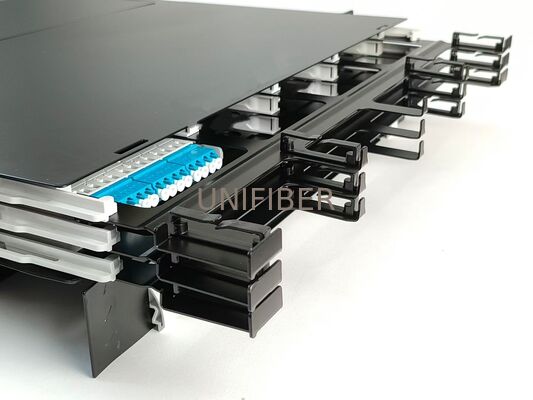

1U 144 Port MPO-LC High Density Fiber Patch Panel with 12x MPO-LC Cassettes

1U 144 Port MPO-LC High Density Fiber Patch Panel with 12x MPO-LC Cassettes
1U 144 Port MPO-LC High Density Fiber Patch Panel with 12x MPO-LC Cassettes 1U 144 Port MPO-LC High Density Fiber Patch Panel with 12x MPO-LC Cassettes 1U 144 Port MPO-LC High Density Fiber Patch Panel with 12x MPO-LC Cassettes

Large Image :  1U 144 Port MPO-LC High Density Fiber Patch Panel with 12x MPO-LC Cassettes

Product Details:
Place of Origin: CHINA
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 1U 144 Port MPO-LC Fiber Patch Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Products: 1U 144 Port MPO-LC Fiber Patch Panel Capacity: 1U-144F 2U-288F 4U-576F
Connector: MPO-LC Material: Cold Rolled Steel
Painting Color: Black Or Grey Cassettes: 8F 12F 16F 24F
Application: Data Center Wiring System
Highlight:

1U high density fiber patch panel

,

144 port MPO-LC patch panel

,

12x MPO-LC cassettes patch panel

1U 144 Port MPO-LC High Density Fiber Patch Panel
This 1U rack-mount fiber optic patch panel is engineered to terminate 144 fibers in a single rack unit, making it the ideal solution for space-constrained data centers migrating from 10G to 40G or 100G networks. It comes pre-loaded with 12 hot-swappable LC 10Gb Breakout Cassettes, each utilizing a Quad LC adapter design (4 LC ports per adapter group) to provide 12 LC ports per cassette. By converting MTP/MPO trunk cables to LC interfaces, this panel significantly simplifies high-density cabling and reduces deployment time.
1U 144 Port MPO-LC High Density Fiber Patch Panel front view 1U 144 Port MPO-LC High Density Fiber Patch Panel side view
Key Features
  • Special compact small design MTP/MPO module box for space optimization and high-volume fiber management
  • Each MPO module box accommodates 24 LC fiber connectors and connects to MTP/MPO adapter ports
  • Sliding drawer design for easy operation, cable management, and labor cost reduction
  • Constructed from lightweight cold-rolled steel sheet
  • Available in multiple configurations: 1U 144-core, 2U 288-core, 4U 576-core
Applications
  • Data Center infrastructure
  • Storage Area Network
  • Fiber Channel
Technical Specifications
U Size 1U (44.5mm) 2U (89mm) 4U (178mm)
Number of Module Positions 12 24 48
Width 482mm
Depth 465mm
Material Cold-rolled steel
Material Coating Powder coating
Color Black
Compliant to RoHS, Reach/SVHC
1U 144 Port MPO-LC High Density Fiber Patch Panel technical diagram
