Product Details:
Payment & Shipping Terms:
|
| Connector Type: | FC/SC/LC/ST | Cable Diameter: | 3.0mm |
|---|---|---|---|
| Cable Color: | Blue(SM) Or Gray(MM) Or Customized | Fiber Count: | 1/2/4/6/8 Fibers |
| Cable Jacket: | PVC/LSZH/OFNR | Fiber Cords Structure: | Mini Armored, Stainless Steel Tube |
| High Light: | fiber optic jumper cables,fiber optic network cable |
||

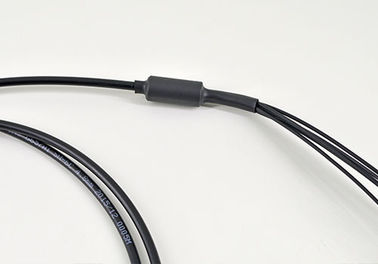

Mini armored fiber patch cables,LC to FC, Light weight, Plenum Jacket
Mini armored fiber cable possesses same OD as general fiber optic cable that enable to assemble with any standard connectors. Kevlar ensure the fiber optics to avoid pulling. Armored structure protects the fiber optics to resist press and improper torsion. The outer coating is optional for flame retardant, RoHS requirement or temperature resistance according to different environments. Light weight, good bending capacity and excellent flexibility.
APPLICATION
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical
FEATURES
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Excellent mechanical endurance
4. Good in repeatability
5. Good in exchange
6. Green Production, CE, RoHS Standard
Parameters
| Item | SingleMode | MultiMode |
| Insertion loss | ≤0.2dB | ≤0.3dB |
| Return loss | PC≥50dB, APC≥55dB, UPC≥60dB | |
| Insert-pull test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10kg | |
| Operating temperature | -40℃~ +85℃ | |
| Ceramic ferrule spec | 125.5um concentricity deviations:≤1μm | 127um concentricity deviations:≤3μm |
| Suitable fiber | 9/125μm | 50/125μm, 62.5/125μm |
