Color: | Yellow,black,red,green,white Etc | Duct Rodder Length: | 10-500m |
---|---|---|---|
Rod Diameter: | 4-18mm | Items: | Cable Laying Tools |
Application: | Pipe, Conduit Cable Laying | Package: | Wooden Pallet And Wooden Box |
High Light: | fiber optic cable assembly,waterproof cable assembly |
Fiberglass Duct Rodder for Cable Placing in Pipe, Conduit,China FRP Duct Rodder Supplier for Cable Laying

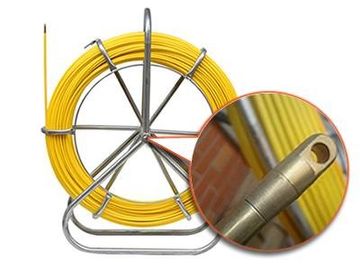

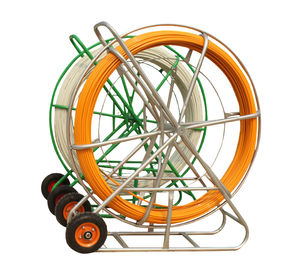

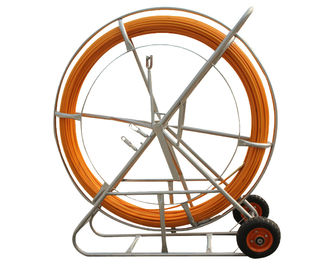

FRP duct rodder is an ideal tool for underground jobs such as pulling cables and lines through conduits, tubes, pipes or ducts. For its high tensile strength, wear-resistant surface and elastic body, it is widely used in the fields of telecommunication, electric power, water conservancy, etc.Duct rodder, also called fiberglass duct rodder, is composed of three parts: internal copper/steel wire, fiberglass rod, and outer polyethylene coating. Each duct rodder comes with a sturdy steel frame with different sizes according to the diameter and length of the rod. Some frames are equipped with wheels, also called wheeled duct rodder, which makes it convenient to move at the job site. The fiberglass rod is the basic element of the duct rodder, large proportion of high quality glass fiber (80%) is added, which ensures its stability under shear stress. And polyester resin is embedded together to form a compact bound core.
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30~500 | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
Wheel Diameter(mm) | 300mm | |
Wall thickness of Metal Frame | 2.2mm | |
Color | blue, yellow, red, white etc | |
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Rod Outer | High Density polyethylene coating | |
Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
Wheel | rubber | |
Brake | Yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending Radius | 295mm | |
Technology | Pultrusion | |
Packaging | Inside | plastic woven strip wind around the frame |
Outside | Wooden pallet and Wooden box |
