Product Details:
Payment & Shipping Terms:
|
| Structure: | Flat Ribbon | Fiber Count: | 4 6 8 12 |
|---|---|---|---|
| Jacket: | LSZH | Diameter: | 2.5*5.0(±0.3)mm |
| Highlight: | aerial fiber optic cable,fiber optic ethernet cable |
||
12 Core single mode fiber optic cable , flat ribbon yellow Fiber Optic Cable For Indoor Distribution

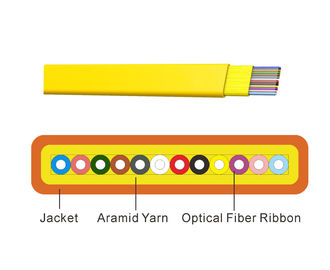

Indoor ribbon fiber cable uses fiber ribbon(s) as optical communication mediun, then warpped with a layer of Dupont aramid yarn as strength member units, and the cable is completed with LSZH(Low smoke, Zero halogen, Flame-retardant)jacket.The fiber ribbon is evenly bound with high modulus soft aramid yarn as strength member Its rectangular outer sheath is shaped by a special material extrusion technique.
Flame-retardant jacket, easy to strip, small bending radius, good performance under stress.
Features:
Application:
Adopted to indoor distribution.
As pigtail of communication equipment.
Suitable for communication equipment served.
Parameters:·
| Fiber Count | Cable Size (mm) | Cable Weight (kg/km) | Bending Radius (mm) | Tensile Strength (N) | Cruch Resistance (N/100mm) | ||||
| PVC Jacket | LSZH Jacket | Static | Dynamic | Long term | Short term | Long term | Short term | ||
| 4 | (3.7±0.4)x(2.5±0.2) | 6.0 | 6.8 | 30D | 60D | 80 | 150 | 200 | 1000 |
| 6 | (4.2±0.4)x(2.5±0.2) | 6.5 | 7.4 | 30D | 60D | 80 | 150 | 200 | 1000 |
| 8 | (4.7±0.4)x(2.5±0.2) | 8.4 | 9.6 | 30D | 60D | 80 | 150 | 200 | 1000 |
| 12 | (4.8±0.4)x(2.5±0.2) | 8.5 | 9.8 | 30D | 60D | 80 | 150 | 200 | 1000 |
Optical Parameters
| 50/125µm | 62.5/125µm | G.652 | G.655 | ||
| Attenuation(+20°C) | @850nm | ≤3.5dB/km | ≤3.5dB/km | ||
| @1300nm | ≤1.5dB/km | ≤ 1.5dB/km | |||
| @1310nm | ≤0.5dB/km | ≤0.5dB/km | |||
| @1550nm | ≤0.4dB/km | ≤0.4dB/km | |||
| Bandwidth (Class A) | @850nm | ≥ 500MHz.km | ≥ 200MHz.km | ||
| @1300nm | ≥ 1000MHz.km | ≥ 600MHz.km | |||
| Numerical Aperture | 0.200 ±0.015NA | 0.275 ±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤ 1260nm | ≤ 1450nm | |||
| Attenuation at temperature cycling Δα(-20°C~+60°C) | @1300nm | ≤ 0.25dB/km | ≤ 0.25dB/km | ||
| @1550nm | ≤ 0.10dB/km | ≤ 0.15dB/km |
