Cat6 SFTP Patch Cable
Unifiber offers high quality cat6 network patch cable. Includes unshielded (UTP) and FTP (Foil twisted pair) and shielded (STP) configurations. Welcome to request a free quote or samples for quality evaluation.

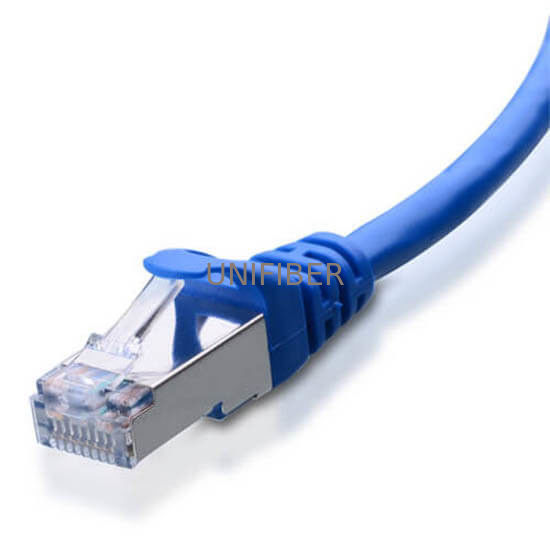

Cat6 S/FTP Patch Cable, Pure 100% Copper, 23 AWG Stranded Cable
To prevent interference and signal loss, extreme shielding is done to the network cable. Cat6 Shielded/Screened Foiled Patch Cables are useful for conditions where proximity to high power, or RMI equipment may result in crosstalk, and it is great for areas where electromagnetic interference may occur.
Our network Cat6 S/FTP patch cables are terminated with premium grade 50 Micron gold plated contacts RJ45 connectors at both ends. The Cat6 S/FTP version is made for Fast Ethernet (10/100BASE-T) and Gigabit Ethernet (1000BASE-T) delivering up to 100 MHz bandwidth. Our high-quality Ethernet Cat6 S/FTP cables meet and exceed ANSI/TIA-568-C.2 standards.
All our cables are UL Listed, ETL Verified and RoHS Compliant. We carry non-booted and snagless booted strain relief shielded and foiled Cat6 cables with a variety of colors to choose from.
Shielded Cat6 Molded Snagless Boot, Strain-Relief S/FTP Patch Cables
Construction of Unifiber Cat6 S/FTP Snagless Boot Patch Cord
Cat6 S/FTP Patch Cable is composed of four twisted pairs of 100% copper wire, each wrapped with a foil shielding before an overall drain wire and shield is wrapped around the conductors. The conductors are made from stranded cables, each pairs of wires twisted tighter to eliminate crosstalks and ANEXT and covered with foil.
RJ45 plugs are terminated at each end of the snagless booted cable by injection molding. Injection molding not only ensures that the cable is pushed right into the connector, but also makes sure that each individual wires are snug securely and efficiently in place.
What’s great with shielded cables is we get the best benefits of a robust and durable cable for harsh environments. Further protection is safely implemented with the strain relief snagless boots at each end that support the RJ45 plugs.
Frequent connection and disconnection may pose strain and breakage to the patch cables. That is why the Cat6 S/FTP snagless booted patch cable has a special feature of having higher mating cycles than FTP and UTP cables and is best for applications requiring the highest cable performance in EMI-exposed environments.
Cat6A Ethernet S/FTP Patch Cable, Non-Booted Crimped/Assembly Style
Construction of Unifiber Cat6 S/FTP Non-Booted Patch Cord
Our Cat6 Non-booted S/FTP cables are constructed by stripping the cable into the standard patch cable length, and a 50-micron, gold-plated RJ45 connector is crimped unto the wires.
Our non-booted Cat6 S/FTP patch cables are best for dense data centers, where cables are crowded. These are also ideal for simple applications and its more cost efficient than our booted cables.
Our Ethernet Cat6 S/FTP cables are compatible with computer devices such as routers, patch panels, modems, switches and hubs. For keen protection against high EMI’s, Cat6 S/FTP patch cables gives extreme shielding that you can easily install in home and office applications, in modems, routers, servers, hubs, printers, switch boxes, gaming console, VoIP, computers and many more.
Cat6 Crossover S/FTP Patch Cable
Unifiber carry Cat6 S/FTP Crossover cables when you want to connect devices without using hubs or switches. Our Cat6 S/FTP crossover cables are shielded and terminated with 50 Micron gold plated contacts RJ45 plugs at each end. With crossover cables, you can easily connect two computers, still keeping great signal integrity.
Conductors: 24AWG or 26AWG or 28AWG stranded bare copper.
Ripcord: under jacket
Jacket: pvc or LSZH
Standards: UL444/CSA-C22.2 No 214,Type CM
EIA/TIA-568A and EIA/TIA-568B.2,Horizontal cableApplications: internet,computer
UTP: unscreen cable
STP : single shielding Network cable ,Mylar tape,Aluminum-mylar tape and Drain wire
SFTP: Double shielding cable,Mylar tape,Aluminum-Mylar tape and drain wire and bare or tinned copper braid
Network cable Connector detail specification:
|ANSI/TIA/EIA-568-C.2||T568A & T568B|
|ISO/IEC 11801||8-position conductor/pair assignment (1-2/3-6/4-5/7-8)|
|Pair Identification||Pair1= Blue/White Pair2= Orange/White Pair3= Green/White Pair4= Brown/White|
|Transmission Performance||NSI/TIA-568-C.2 category 7 (1-750 MHz) specifications Cordage|
|Constructor||4 pairs, 7 strands,26 AWG, SSTP (PiMF)|
|Cable Type||SSTP(PiMF) Cat.6 Patch Cable|
|Outer Cable Diameter||6.0mm ± 0.2 mm|
|Outer Jacket||PVC/LSZH Jacket Plug|
|Type||Shielded RJ45 8P8C Modular Plug|
|Housing||UL listed 94V-0/1/2 flame retardant polycarbonate|
|IDC blades||phosphor bronze, gold plating over 100 μin of nickel in contact area|
|Retention||50 N (11 lbf) for 60±5 s|
|Mating cycle life||min 750 cycles|
|Tensile strength||≥ 20 N per wire|
|Installation Temperature||0°C to +60°C|
|Operating temperature||-20°C to +60°C|
|Minimum bend radius||4 outer cable diameters|
|Boot Type||Any type of the above picture|
|Length||0.3m-30m or As per requested|
|Package||polybag or Blister Package|
