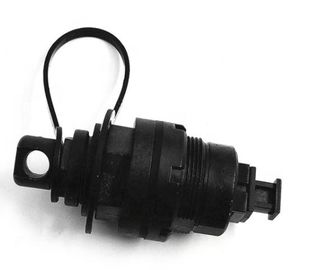

Mini IP Waterproof SC Adapter, Matching with Corning Optitap Connector
Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

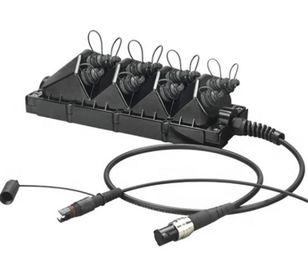

The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
Can be installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use
IP-67 water and dust protection Factory terminated for high performance -40ºC~85ºC operating temperature 445N (100 lbs) cable retention Accepts 2.0mm to 7.0mm cable diameters Low profile in-line receptacle available No installation tools requires
