Product Details:
Payment & Shipping Terms:
|
| Material: | Cold Rolled Steel Sheet | Ports: | 12,24,48 |
|---|---|---|---|
| Application: | 19" Rack Mount | Color: | Beige Or Black |
| Connector Type: | SC,FC,LC,ST, Simplex Or Duplex | Package: | Carton Box |
| High Light: | fiber optic cable termination patch panel,1u fiber patch panel |
||

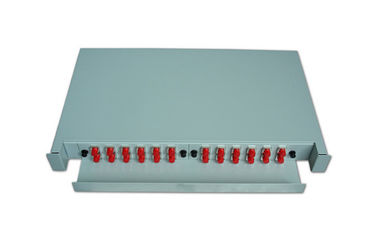

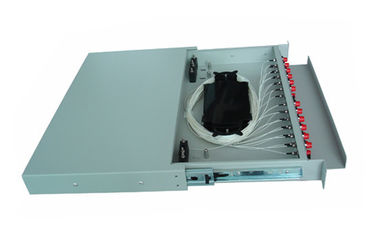

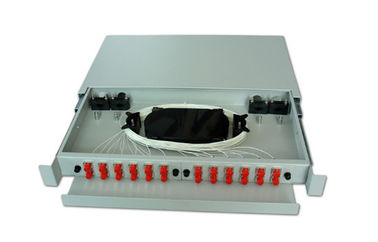

24 port fiber optic patch panel, 1U 19" Sliding patch panel rack, with 2 removable adapter plate
fiber optic distribution box is designed for Slidable Rack-mount.It has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
Features:
Can be used in 19'', 23'' standard distribution frame
Standard size, can be rackmount and wallmount
Splice tray inside changeable
Various panel plate to fit different adapter interface
Suitable for ribbon and single fiber
Front mark on the plate is easy for identification and operation
Application:
Fiber to the home (FTTH)
Telecommunications subscriber loop
LAN/WAN
CATV
Order information:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
