Product Details:
Payment & Shipping Terms:
|
| Product: | 1U 96 Port Rack Mount Fiber Patch Panel | No Of Ports: | 96F |
|---|---|---|---|
| Adapter: | Quad LC | Material: | Cold Rolled Steel |
| Function: | Fiber Splicing&patching | Installation: | Standard EIA 19″ Rack Mount |

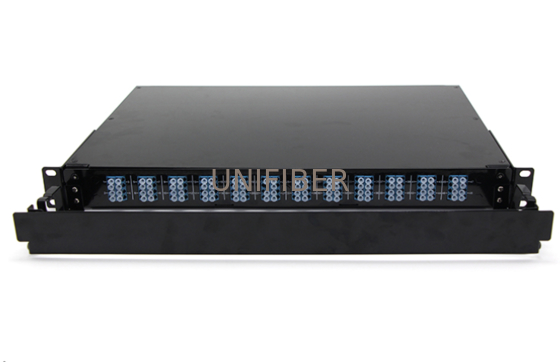

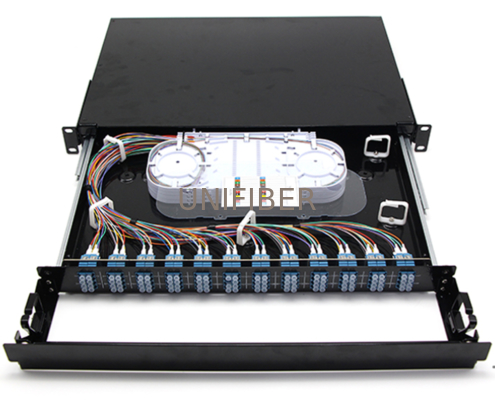

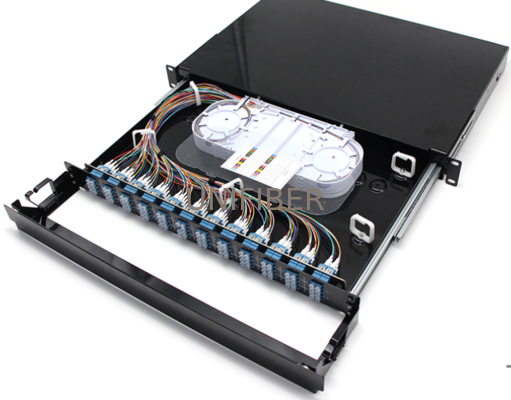

Unifiber provides 19” Rack-mountable High Density Fiber Optic Patch Panel for splicing and/or termination of optical fibers in an indoor environment. Also, loaded type available with Multimode or Single-mode pigtails, splice accessories and adapters,this is a compact Optical Distribution Frame which combines the splicing and patching segment in the same 1HU unit 19” Sub-Rack.The high density of 96ports (LC) makes the this HD fiber patch panel is the ideal distribution component in mixed 19” rack configurations,
| Part No . | HD PATCH PANEL 96F | Product Name | 19‘ 1RU Slide Rail Rack mount patch panel V3 |
| Material | CRS Cold rolled steel | Installation | Standard EIA 19″ Rack |
| Connection Port | 96Ports LC | Dimensions (HxWxD) | 482*2401.1*44.3mm |
| Adapter type | LC Quad type flangeless | Fiber Mode | SM G657A1 or G657A2 |
| Function | Fiber Splicing&patching | Pigtail Spec | LCUPC 1.5m 0.9mm |
