FHD High Density 1U 144 Fiber Rack Mount Enclosure 4 x FHD Cassettes or Panels

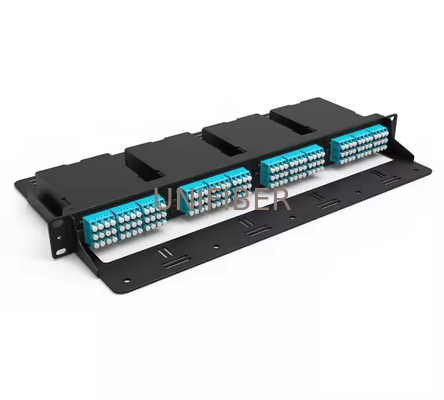

Large Image : FHD High Density 1U 144 Fiber Rack Mount Enclosure 4 x FHD Cassettes or Panels

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	1U 144 Fiber Rack Mount Enclosure

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Products:	FHD High Density Rack Mount Enclosure	Capacity:	Up To 144 Fibers (LC) Or 1,152 Fibers (MTP®-24)
Cassettes:	4 X 36 Fiber	Material:	Cold Rolled Steel
Painting Color:	RAL9005/Black	Application:	Accepts FHD Adapter Panels/Cassettes

FHD 1U rack mount blank enclosure is designed for installation within standard EIA 19" rack rails to accept up to 4pcs FHD series cassettes or fiber adapter panels. It provides a flexible and modular system for managing fiber connections and patching and makes cassettes or panels quickly snap in and pull out, making installation, moves, adds, and changes easier than ever. The detachable design provides multiple choices for your application by being separated into patch panels, plastic D-rings, lacer panels, and lacer bars. The steel lacer panel contains 4 pass-through holes on the 1U for easy to install FHD® fiber adapter panels. This horizontal cable management panel can protect cables from snags and damage to the cable.

FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers, and enterprise applications

Specification

Height	1U	Fiber Count	Up to 144 Fibers (LC) or 1,152 Fibers (MTP®-24)
Product Type	Fixed	Cable Entry Direction	Rear Cable Entry
Loaded	Loaded / Unloaded	Material	Steel, Powder-coated Black
Mounting Type	Rack Mount	Installation	Standard EIA 19" Rack Rails
Dimensions (HxWxD)	1.73''x19.00''x10.70''	Application	Accepts 4 FHD / Panduit Panels/Cassettes
