Product Details:
Payment & Shipping Terms:
|
Cable Diameter: | 7.0mm | Cable Jacket: | LSZH,PE,TPU,UV Resistance |
---|---|---|---|
Cable Length: | 1/3/5/10m Or Customized | Connector: | PDLC |
Fiber: | Single Mode | Application: | FTTA FTTH FTTX |
High Light: | waterproof cable assembly,fiber optic connector assembly |

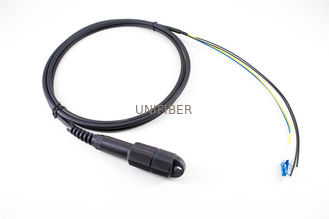

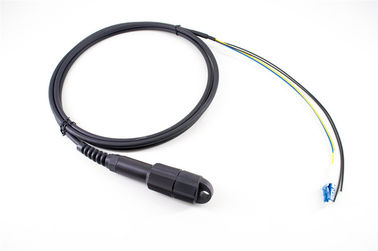

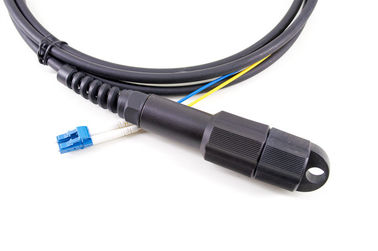

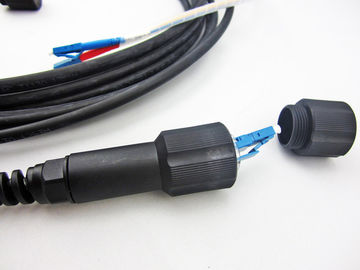

FTTH/FTTA PDLC 2core -LC/UPC Duplex single mode outdoor waterproof fiber optic patch cable assembly GYFJH SM 7.0mm LSZH
PDLC connectors and required optical cables have become standard interface applications for 4G,5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
Features
IP67 Water immersion and Dust protection for hash environment.
Chemical Resistance.
Simple assembly requiring no special tools.
Durable mechanical mating, minimum of 500 matings
Wide range of operational temperature for outside plant -40 to+85°C.
100% optically tested to ensure quality performance assemblies.
Applications
Used in access building cable.
Used in wireless base station (BS) horizontal and vertical cabling.
Military communication system Coal, oil, natural gas, geological exploration
Broadcast television, temporary communication
PARAMETERS
Model | SM | MM |
Fiber Count | 2 core | |
Polish | PC | |
Housing Color | Blue or customized | Beige or customized |
Test Eavelength | 1310/1550nm | 850/1300nm |
Insertion Loss | less than 0.30dB | Less than 0.30dB |
Return Loss | >50dB | >30dB |
Durability (500 matings) | less than 0.2dB | |
Cable OD | 7.0mm armored / non armored or customized | |
Storage temperature | -20~70℃ | |
Operating temperature | -40~85℃ |
