Mini SC/APC Fiber Optic Cable Connectors LSZH Jacket IP67 SC Field Installable

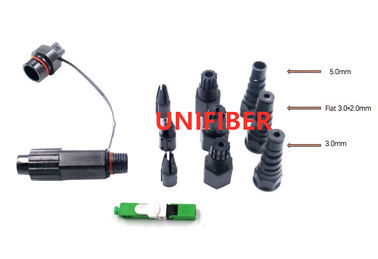

Large Image : Mini SC/APC Fiber Optic Cable Connectors LSZH Jacket IP67 SC Field Installable

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	MINI SC

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	5-8days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Connector:	Mini SC	Compatiable:	Corning OptiTap™ Or HuaWei Mini SC
Waterproof Grade:	IP67	Cable Type:	3.0mm/5.0mm/flat 2.0*3.0mm
Fiber Type:	G652D/G657A	Cable Jacket:	LSZH
Highlight:	fiber optic cable assembly , waterproof cable assembly

OptiTap™ compatible SC field installable reinforced connector ,Outdoor waterproof mini SC/APC fast connector assemblies

UNIFIBER outdoor filed installable Reinforced SC connector is factory -terminated, environmentally sealed and hardened connector toreduce the cost and the time of drop cable deployment in optical access networks. The outdoor field installable reinforced connector is mainly used in outdoor connection of the optical transmitter, they are widely used in data transmission network.

Features:

Flexibility and reliability provides fast and simple deployments within a network

Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber

Available in multiple fiber lengths to meet all your FTTX design drop deployment

Designed to reduce the cost and time of drop fiber deployment in the network

Faster network roll out and customer installations
100% tested assemblies built in a controlled environment
Lower cost deployment by utilizing plug and play solutions

Application:

Fiber to the home (FTTH) connectivity

Outdoor FTTA solutions

Optical access networks

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
Applicable for	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB RL ≤ 5dB
